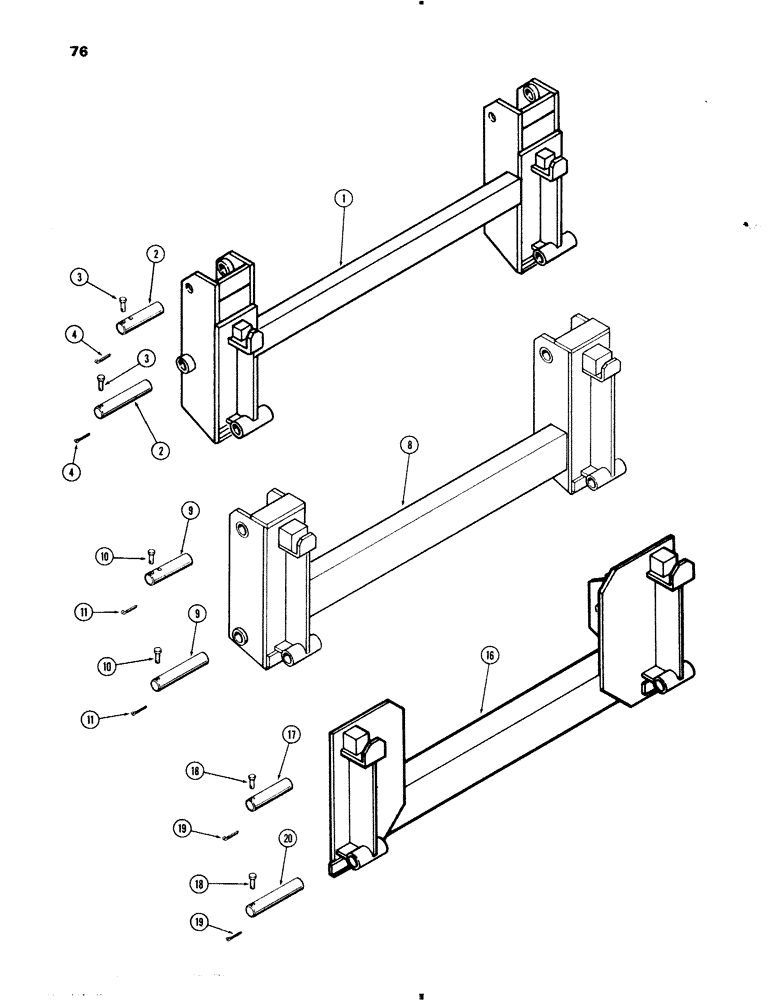

Запчасти Case IH 70 (76) - BUCKET ATTACHING BRACKET, USE WITH TIRES LARGER THAN 7:50 X (82) - FRONT LOADER & BUCKET

1

R88313

BRACKET - bucket adapting (Machinery Item), Includes: Ref. 2 - 4

1шт.

2

T50016

PIN

- 1-1/8 x 6-1/2"

4шт.

3

T50008

PIN

- clevis

4шт.

4

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

8

T88312

BRACKET - bucket adapting (Machinery Item), Includes: Ref. 9 - 11, bucket attaching bracket (use with 7 :50 x 18 tires or smaller

1шт.

9

T50016

PIN

- 1-1/8 x 6-1/2", bucket attaching bracket (use with 7 :50 x 18 tires or smaller

4шт.

10

T50008

PIN

- clevis, bucket attaching bracket (use with 7 :50 x 18 tires or smaller

4шт.

11

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Bucket attaching bracket (use with 7 :50 x 18 tires or smaller 1/8" x 3/4"

4шт.

16

T53529

BRACKET

- quick adapting, quick adapting bracket (for david brown loaders)

1шт.

17

T50017

PIN

- 1-1/8 x 5", quick adapting bracket (for david brown loaders)

2шт.

18

T50008

PIN

- clevis, quick adapting bracket (for david brown loaders)

4шт.

19

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Quick adapting bracket (for David Brown loaders) 1/8" x 3/4"

4шт.

20

T50016

PIN

- 1-1/8 x 6-1/2", quick adapting bracket (for david brown loaders)

2шт.
