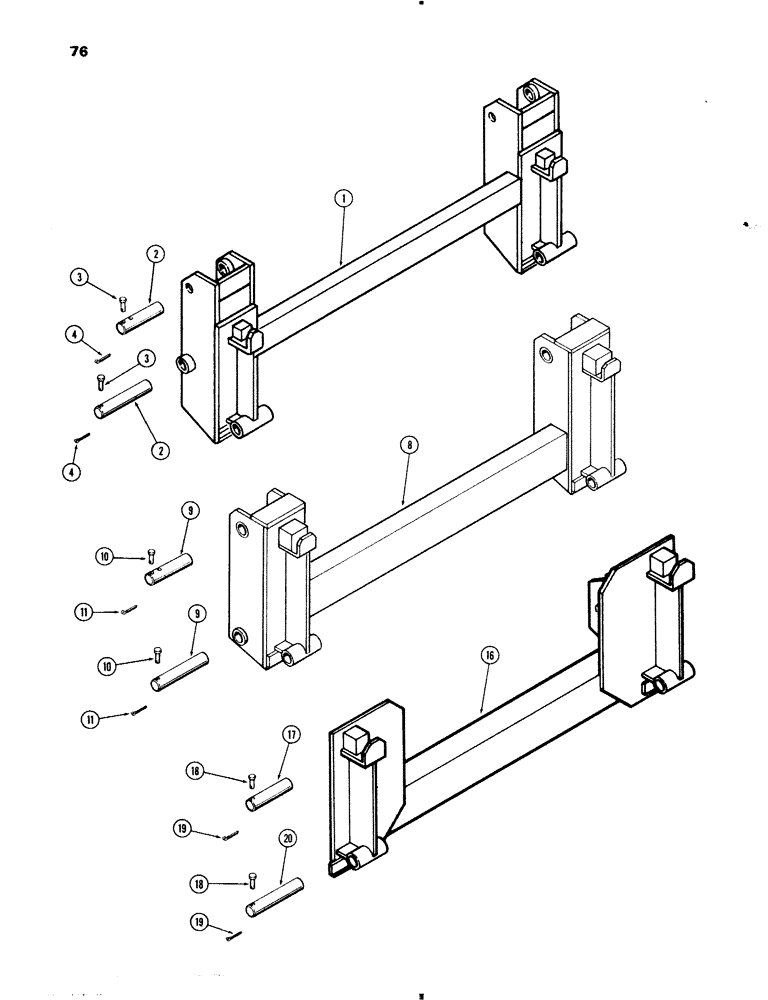

Запчасти Case IH 70 (76[1]) - BUCKET ATTACHING BRACKET, USE WITH 7:50 X 18 TIRES OR SMALLER (82) - FRONT LOADER & BUCKET
![Схема запчастей Case IH 70 - (76[1]) - BUCKET ATTACHING BRACKET, USE WITH 7:50 X 18 TIRES OR SMALLER (82) - FRONT LOADER & BUCKET](https://partsell.ru/storage/images/caseih/894923.png)
№
Артикул
Название
Примечание
Количество
1
R88313
BRACKET - bucket adapting (Machinery Item)
1шт.
2
T50016
PIN
- 1-1/8 x 6-1/2"
4шт.
3
T50008
PIN
- clevis
4шт.
4
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
8
T88312
BRACKET - bucket adapting (Machinery Item)
1шт.
9
T50016
PIN
- 1-1/8 x 6-1/2"
4шт.
10
T50008
PIN
- clevis
4шт.
11
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
16
T53529
BRACKET
- quick adapting
1шт.
17
T50017
PIN
- 1-1/8 x 5"
2шт.
18
T50008
PIN
- clevis
4шт.
19
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
20
T50016
PIN
- 1-1/8 x 6-1/2"
2шт.
Выбрано товаров: 13
