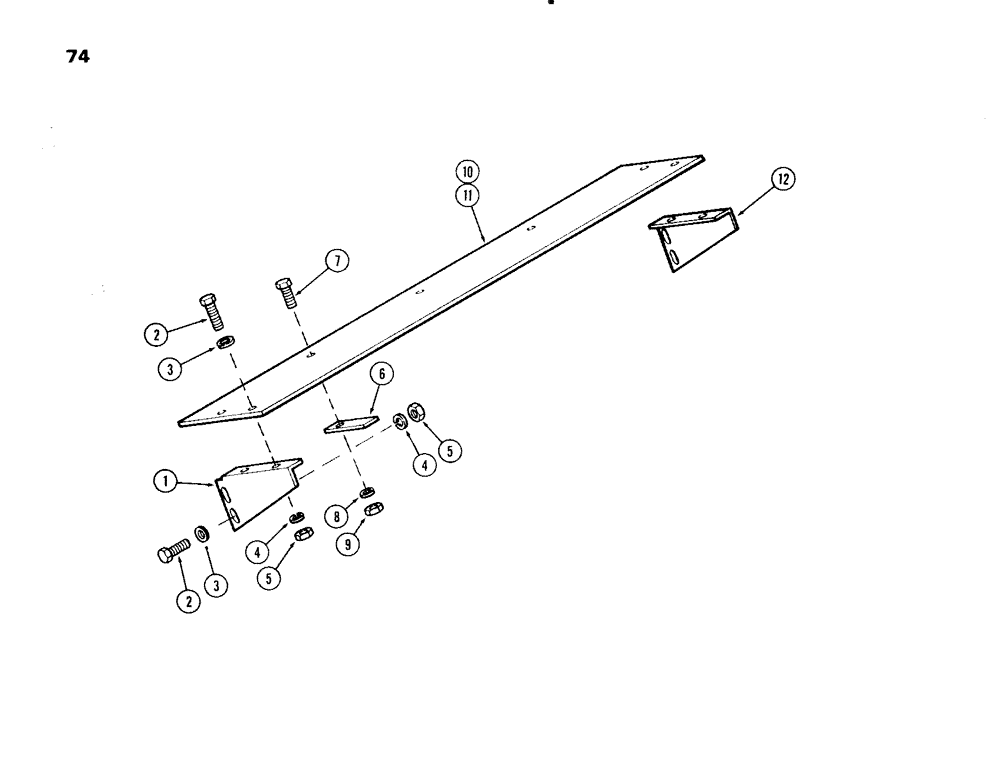

Запчасти Case IH 70 (74) - SPILL GUARD, 72 INCH BUCKET (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

3

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge

8шт.

4

92-6

LOCK WASHER,3/8"

8шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

8шт.

6

T50028

CLAMP

5шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

5шт.

10

T50029

PLATE

- spill guard

1шт.

12

T50026

PLATE - end LH

1шт.
