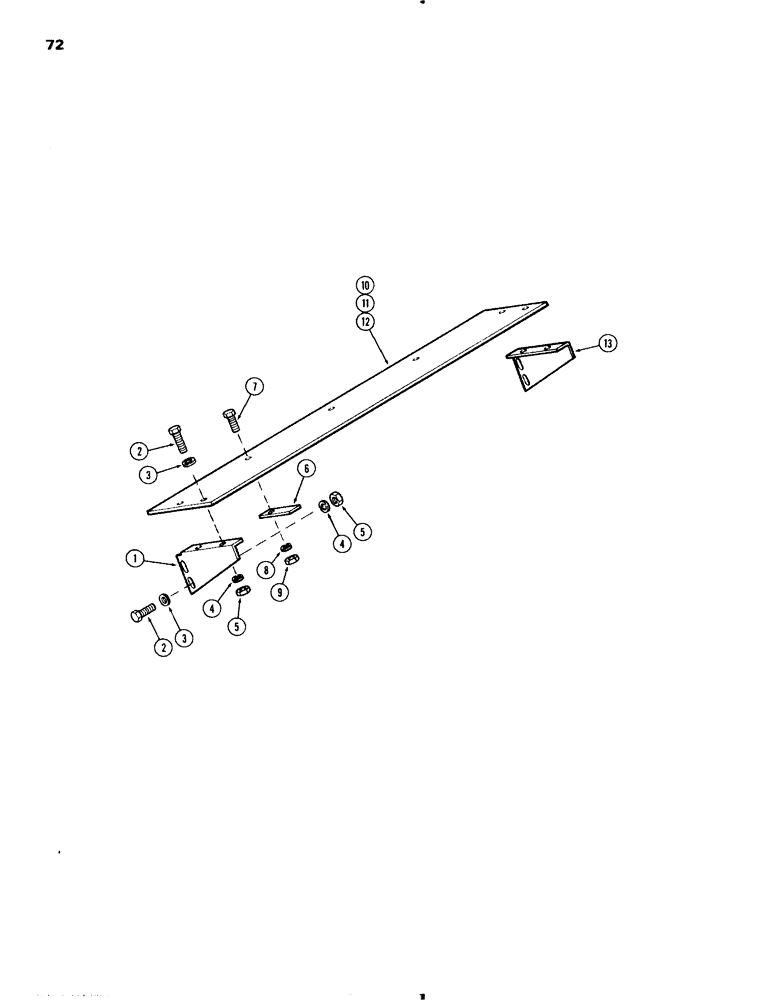

Запчасти Case IH 70 (72) - SPILL GUARD, 48 INCH BUCKET (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH, 60 and 66 inch

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

60 and 66 inch Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

3

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge, 60 and 66 inch

8шт.

4

92-6

LOCK WASHER,3/8"

60 and 66 inch 3/8"

8шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, 60 and 66 inch

8шт.

6

T50028

CLAMP, 60 and 66 inch

3шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

60 and 66" Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

60 and 66 inch 3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, 60 and 66 inch

3шт.

10

T52177

PLATE - spill guard, 60 and 66 inch

1шт.

13

T50026

PLATE - end LH, 60 and 66 inch

1шт.
