(70) - MATERIAL BUCKETS WITH TINES

Запчасти Case IH 70 (70) - MATERIAL BUCKETS WITH TINES (82) - FRONT LOADER & BUCKET

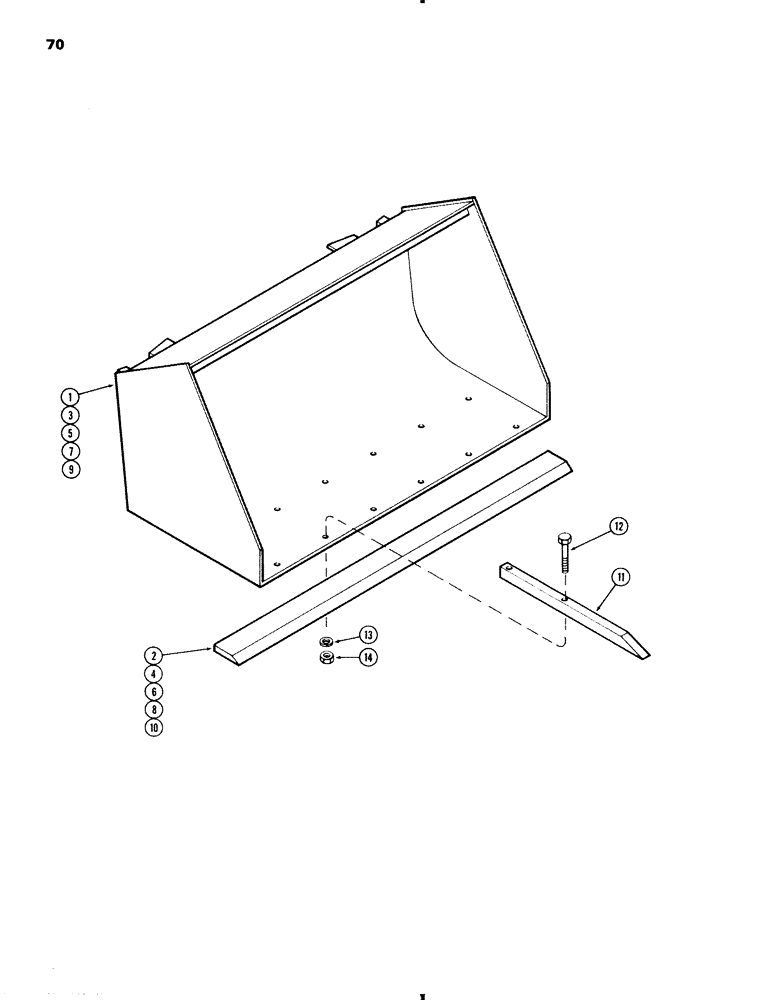

Схема запчастей Case IH 70 - (70) - MATERIAL BUCKETS WITH TINES (82) - FRONT LOADER & BUCKET
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T90800

BUCKET - 48" drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 2

1шт.

2

T52174

EDGE - replaceable 56" for 48" bucket

1шт.

11

T51043

TINE

S - 24" long (48" bucket) (Machinery Item) (Replaces T89091), Includes: Ref. 12 - 14

6шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

3

T92142

BUCKET - 60" drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 4

1шт.

4

T50013

EDGE

- replaceable 68" for 60" bucket

1шт.

11

T51043

TINE

S - 24" long (60" bucket) (Machinery Item) (Replaces T89091), Includes: Ref. 12 - 14

7шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

5

T92144

BUCKET - 66" drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 6

1шт.

6

T52179

EDGE

- replaceable 74" for 66" bucket

1шт.

11

T51043

TINE

S - 24" long (66" bucket) (Machinery Item) (Replaces T89091), Includes: Ref. 12 - 14

8шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

7

T92146

BUCKET - 72" drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 8

1шт.

8

T50014

EDGE

- replaceable 80" for 72" bucket

1шт.

11

T51043

TINE

S - 24" long (72" bucket) (Machinery Item (Replaces T89091), Includes: Ref. 12 - 14

8шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

9

T92148

BUCKET - 83" drilled for tines with replaceable edge (Machinery Item), Includes: Ref. 10

1шт.

10

T50015

EDGE

- replaceable 91" for 83" bucket

1шт.

11

T51043

TINE

S - 24" long (83" bucket) (Machinery Item) (Replaces T89091), Includes: Ref. 12 - 14

10шт.

12

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.
