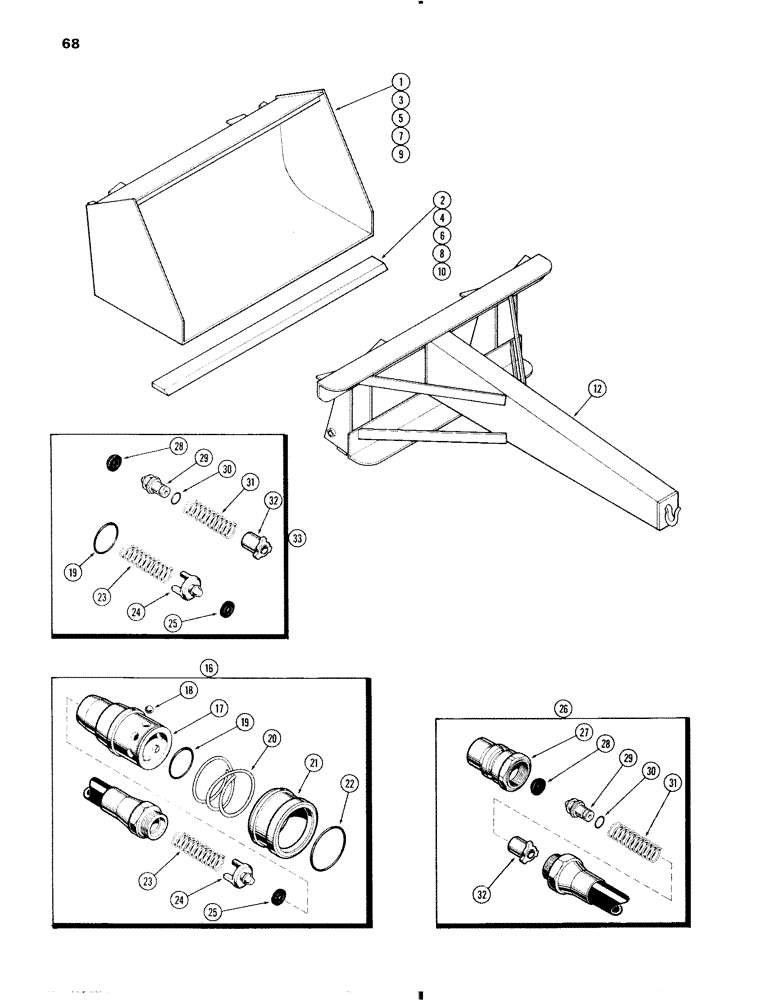

Запчасти Case IH 70 (68) - MATERIAL BUCKETS, BOOM SPECIAL, HYDRAULIC QUICK COUPLER (82) - FRONT LOADER & BUCKET

1

T90799

BUCKET - 48" with replaceable edge (Machinery Item), Includes: Ref. 2

1шт.

When ordering new buckets as machinery bundle item for 70 Loaders prior to S/N 1609502 or 70Q Loaders prior to S/N 1609949 it will be necessary to shorten the 2 inch spacers in bucket ti 1 inch to maintain the original dumo angle. The cylinder seals must be replaced when taking cylinders apart.

1шт.

2

T52174

EDGE - replaceable 56" for 48" bucket

1шт.

3

T92141

BUCKET - 60" with replaceable edge (Machinery Item), Includes: Ref. 4

1шт.

When ordering new buckets as machinery bundle item for 70 Loaders prior to S/N 1609502 or 70Q Loaders prior to S/N 1609949 it will be necessary to shorten the 2 inch spacers in bucket ti 1 inch to maintain the original dumo angle. The cylinder seals must be replaced when taking cylinders apart.

1шт.

4

T50013

EDGE

- replaceable 68" for 60" bucket

1шт.

5

T92143

BUCKET - 66" with replaceable edge (Machinery Item), Includes: Ref. 6

1шт.

When ordering new buckets as machinery bundle item for 70 Loaders prior to S/N 1609502 or 70Q Loaders prior to S/N 1609949 it will be necessary to shorten the 2 inch spacers in bucket ti 1 inch to maintain the original dumo angle. The cylinder seals must be replaced when taking cylinders apart.

1шт.

6

T52179

EDGE

- replaceable 74" for 66" bucket

1шт.

7

T92145

BUCKET - 72" with replaceable edge (Machinery Item), Includes: Ref. 8

1шт.

When ordering new buckets as machinery bundle item for 70 Loaders prior to S/N 1609502 or 70Q Loaders prior to S/N 1609949 it will be necessary to shorten the 2 inch spacers in bucket ti 1 inch to maintain the original dumo angle. The cylinder seals must be replaced when taking cylinders apart.

1шт.

8

T50014

EDGE

- replaceable 80" for 72" bucket

1шт.

9

T92147

BUCKET 83" with replaceable edge (Machinery Item), Includes: Ref. 10

1шт.

When ordering new buckets as machinery bundle item for 70 Loaders prior to S/N 1609502 or 70Q Loaders prior to S/N 1609949 it will be necessary to shorten the 2 inch spacers in bucket ti 1 inch to maintain the original dumo angle. The cylinder seals must be replaced when taking cylinders apart.

1шт.

10

T50015

EDGE

- replaceable 91" for 83" bucket

1шт.

12

T88314

BOOM - special heavy duty (Machinery Item)

1шт.

16

A28542

COUPLING, QUICK, FEM

COUPLING ASSY - breakaway female half, Includes: Ref. 17 - 32, hydraulic quick coupler

4шт.

17

A27349

BODY

- female section, hydraulic quick coupler

1шт.

18

211-7

BALL,1/4" Dia

- male coupling swivel, Grade A, hydraulic quick coupler 1/4" Dia

8шт.

19

A34848

O-RING

- body 1-1/8 x 7/8 x 1/8", hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

20

A27354

SPRING

- sleeve tension, hydraulic quick coupler

1шт.

21

A27353

SLEEVE

SLEEVE - male coupling lock and release, hydraulic quick coupler

1шт.

22

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap sleeve retaining, hydraulic quick coupler

1шт.

23

A11324

SPRING

- piston pressure, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

24

A26215

PISTON

- coupling socket, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

25

A33964

SEAL

- piston, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

26

A28541

COUPLING, BREAK AWAY

COUPLING ASSY - breakaway male half, hydraulic quick coupler

4шт.

27

A27356

PIPE FITTING

BODY - male section, hydraulic quick coupler

1шт.

28

A33964

SEAL

- piston, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

29

A27508

PISTON

- coupling, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

30

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston 3/8 x 1/4 x 1/16", hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

31

A27351

SPRING

- piston, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

32

51200858

SLEEVE

- piston, hydraulic quick coupler

1шт.

Part of P/N A40459 Repair Kit

1шт.

33

A40459

KIT

REPAIR KIT, Includes: Ref. 19, 23 - 25 and 28 - 32, hydraulic quick coupler

1шт.
