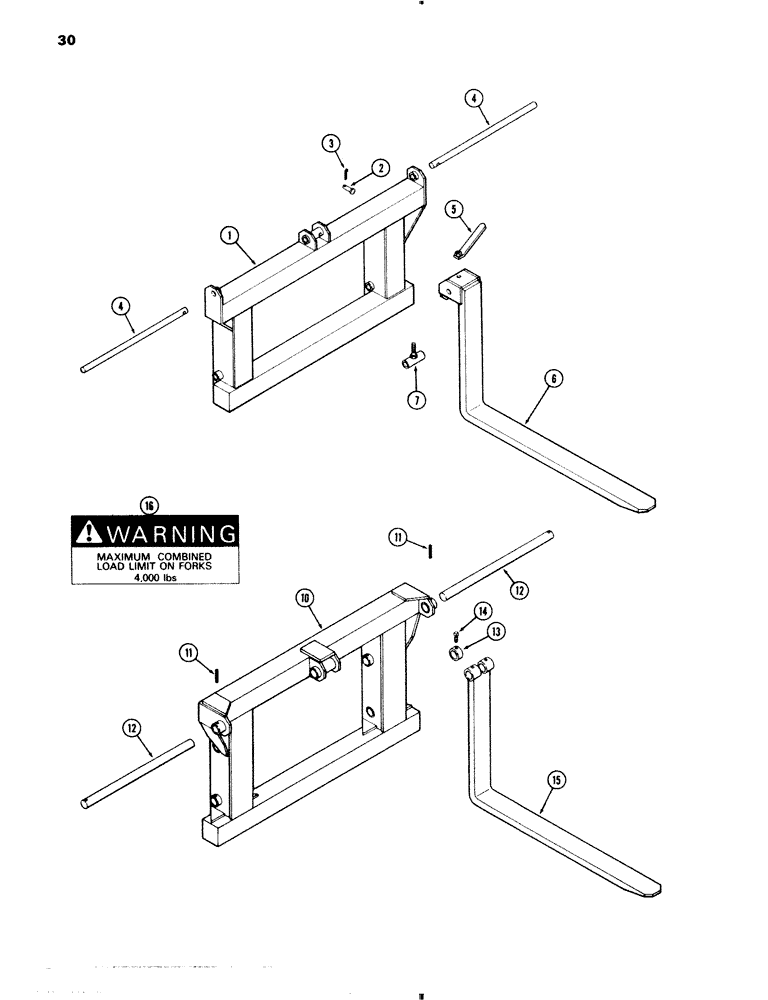

Запчасти Case IH 70 (30) - FORK LIFT ATTACHMENTS (82) - FRONT LOADER & BUCKET

1

T53906

FRAME - main

1шт.

2

T50008

PIN

- clevis

2шт.

3

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

T53905

PIN - fork

2шт.

5

T53903

LOCK HANDLE

2шт.

6

T53907

TOOTH ASSEMBLY

2шт.

7

T53904

LOCK ASSEMBLY - fork tooth

2шт.

10

T54639

FRAME

- main fork lift attachment

1шт.

11

138-325

ROLLPIN - 7/16 x 2-1/4" fork lift attachment

2шт.

12

T54641

PIN

- fork fork lift attachment

2шт.

13

T54642

BUSHING

- 2-1/8 x 7/8" fork lift attachment

2шт.

14

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

- 3/8 x 1/2" NC cup point fork lift attachment

2шт.

15

T54640

TOOTH

ASSEMBLY fork lift attachment

2шт.

16

321-4735

DECAL

PLATE - decal load limit 4000 pounds fork lift attachment

1шт.

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- drive #6 x 1/4" (Not illustrated) fork lift attachment

2шт.
