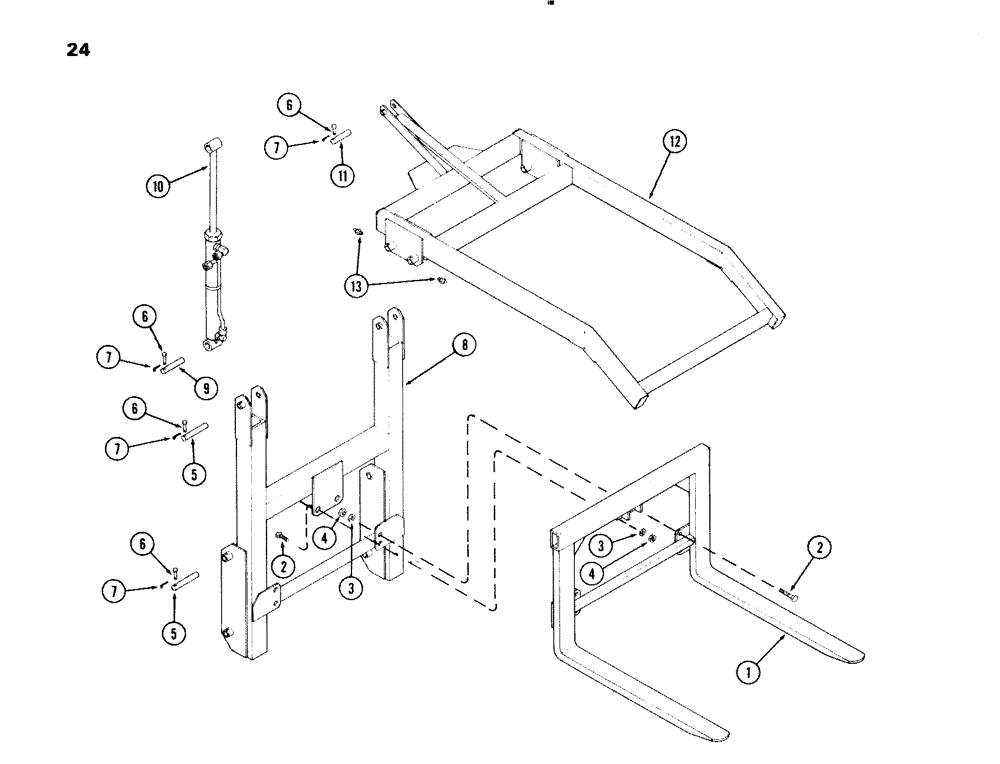

Запчасти Case IH 70 (24) - HAY BALE HANDLER, WITH ONE PIECE GRAPPLE ARM (82) - FRONT LOADER & BUCKET

1

T54057

RACK

ASSEMBLY

1шт.

2

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

4

129-108

NUT,3/4"-10, G5

6шт.

5

T50016

PIN

- 1-1/8 x 6-1/2"

4шт.

6

T50008

PIN

- clevis

6шт.

7

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

8

T54059

FRAME - main

1шт.

9

T50086

PIN

- 1-1/8 x 5-3/8"

1шт.

10

T53894

CYLINDER ASSY.

CYLINDER - hydraulic 2" (See Figure 32)

1шт.

11

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2"

1шт.

12

T54060

ARM

GRAPPLE ARM

1шт.

13

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.
