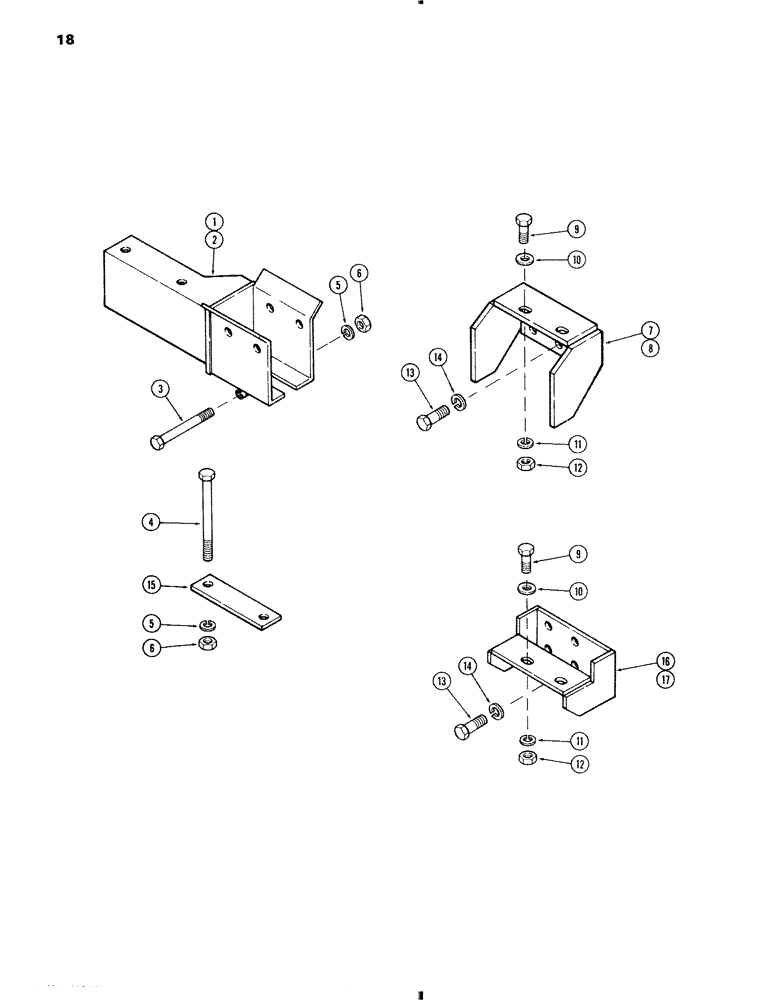

Запчасти Case IH 70 (18) - MOUNTING BRACKETS AND CLAMPS, 630 AND 640 STANDARD WHEEL (82) - FRONT LOADER & BUCKET

1

T52199

MOUNTING BRACKET - right rear

1шт.

2

T52198

MOUNTING BRACKET - left rear

1шт.

3

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex (Grade 5)

6шт.

4

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- 5/8 x 7-1/2" NC hex (Grade 5)

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

6

25-1010

NUT,5/8"-11, G5

10шт.

7

T52197

MOUNTING BRACKET - right front

1шт.

8

T52196

MOUNTING BRACKET - left front

1шт.

9

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

10

95-10

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

25-1010

NUT,5/8"-11, G5

4шт.

13

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

15

T52200

STRAP - rear axle

4шт.

1

T52199

MOUNTING BRACKET - right rear 631 and 641 general purpose tractors

1шт.

2

T62198

MOUNTING BRACKET - left rear 631 and 641 general purpose tractors

1шт.

3

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex (Grade 5) 631 and 641 general purpose tractors

6шт.

4

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- 5/8 x 7-1/2" NC hex (Grade 5) 631 and 641 general purpose tractors

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 631 and 641 General purpose tractors 5/8"

10шт.

6

25-1010

NUT,5/8"-11, G5

631 and 641 General purpose tractors 5/8"-11, G5

10шт.

9

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

631 and 641 General purpose tractors Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

10

95-10

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge 631 and 641 general purpose tractors

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 631 and 641 General purpose tractors 5/8"

4шт.

12

25-1010

NUT,5/8"-11, G5

631 and 641 General purpose tractors 5/8"-11, G5

4шт.

13

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

631 and 641 general purpose tractors Hex, 3/4"-10 x 1 1/2", G5

8шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 631 and 641 General purpose tractors 3/4"

8шт.

15

T52200

STRAP - rear axle 631 and 641 general purpose tractors

4шт.

16

T52202

MOUNTING BRACKET - right front 631 and 641 general purpose tractors

1шт.

17

T52201

MOUNTING BRACKET - left front 631 and 641 general purpose tractors

1шт.
