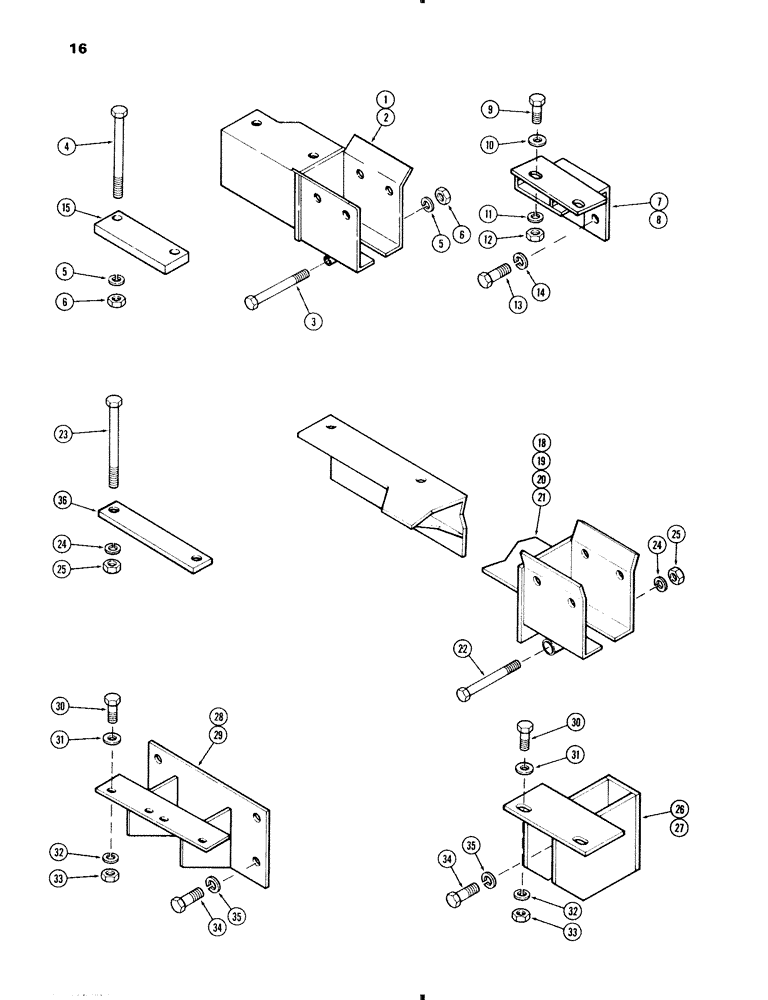

Запчасти Case IH 70 (16) - MOUNTING BRACKETS AND CLAMPS, 431, 441, 470, 531, 541 AND (82) - FRONT LOADER & BUCKET

1

T52187

MOUNTING BRACKET - right rear

1шт.

2

T52186

MOUNTING BRACKET - left rear

1шт.

3

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex (Grade 5)

6шт.

4

13-10144

BOLT (MACHINE)

BOLT - 5/8 x 9" NC hex (Grade 5)

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

6

25-1010

NUT,5/8"-11, G5

10шт.

7

T52190

MOUNTING BRACKET - right front

1шт.

8

T52189

MOUNTING BRACKET - left front

1шт.

9

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

10

95-10

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

25-1010

NUT,5/8"-11, G5

4шт.

13

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

15

T52188

SPACER - rear axle

2шт.

18

T50493

BRACKET

MOUNTING BRACKET - right rear (Order T51251 and T51252) 770, 870, 970 and 1070 tractors with adjustable front axles, Serial Range: -12598

1шт.

19

T51254

MOUNTING BRACKET - right rear 770, 870, 970 and 1070 tractors with adjustable front axles, Start Serial: 12598

1шт.

20

T50492

BRACKET

MOUNTING BRACKET - left rear (Order T51251 and T51252) 770, 870, 970 and 1070 tractors with adjustable front axles, Serial Range: -12598

1шт.

21

T51253

MOUNTING BRACKET - left rear 770, 870, 970 and 1070 tractors with adjustable front axles, Start Serial: 12598

1шт.

22

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

770, 870, 970 and 1070 tractors with adjustable front axles Hex, 5/8"-11 x 5 1/2", G5

6шт.

23

113-678

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

- 5/8 x 8-1/2" NC hex (Grade 5) 770, 870, 970 and 1070 tractors with adjustable front axles

4шт.

24

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 770, 870, 970 and 1070 tractors with adjustable front axles 5/8"

10шт.

25

129-107

NUT,5/8"-11, G5

770, 870, 970 and 1070 tractors with adjustable front axles 5/8"-11, G5

10шт.

26

T50048

MOUNTING BRACKET - right front 770, 870, 970 and 1070 tractors with adjustable front axles, Serial Range: -12598

1шт.

27

T50047

MOUNTING BRACKET - left front 770, 870, 970 and 1070 tractors with adjustable front axles, Start Serial: 12598

1шт.

28

T54053

BRACKET

MOUNTING BRACKET - right front 770, 870, 970 and 1070 tractors with adjustable front axles, Serial Range: -12598

1шт.

29

T54054

BRACKET

MOUNTING BRACKET - left front 770, 870, 970 and 1070 tractors with adjustable front axles, Start Serial: 12598

1шт.

30

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

770, 870, 970 and 1070 tractors with adjustable front axles Hex, 5/8"-11 x 1 3/4", G5

4шт.

31

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge 770, 870, 970 and 1070 tractors with adjustable front axles

4шт.

32

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 770, 870, 970 and 1070 tractors with adjustable front axles 5/8"

4шт.

33

129-107

NUT,5/8"-11, G5

770, 870, 970 and 1070 tractors with adjustable front axles 5/8"-11, G5

4шт.

34

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

770, 870, 970 and 1070 tractors with adjustable front axles Hex, 3/4"-10 x 1 1/2", G5

8шт.

35

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 770, 870, 970 and 1070 tractors with adjustable front axles 3/4"

8шт.

36

T50037

STRAP - rear axle 770, 870, 970 and 1070 tractors with adjustable front axles

4шт.
