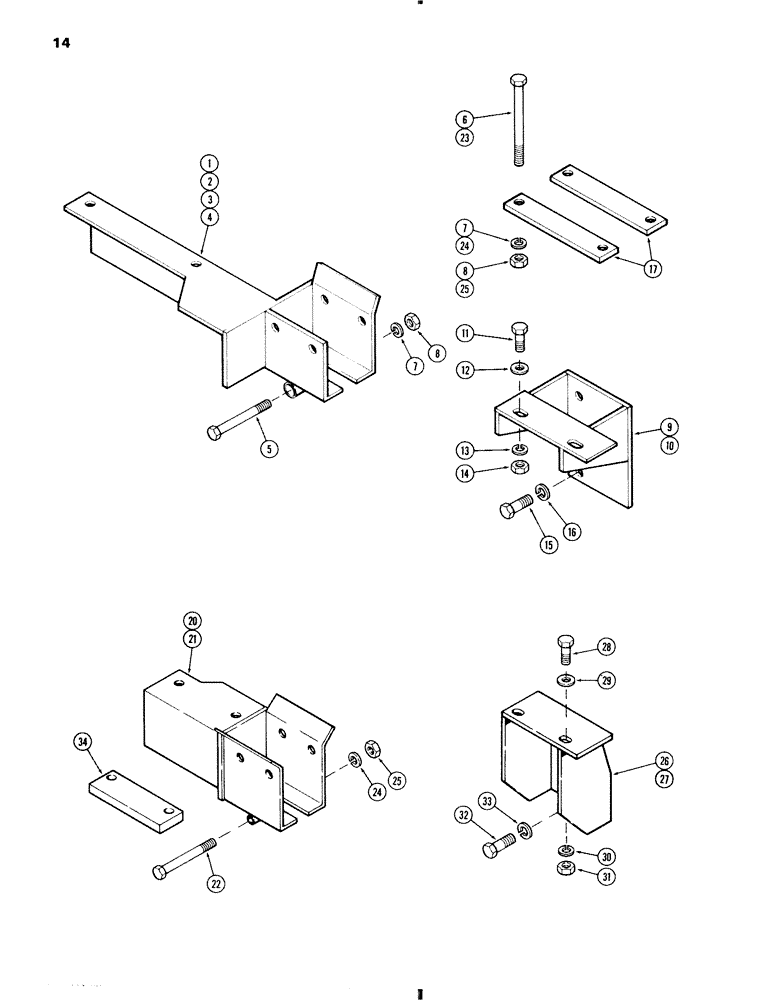

Запчасти Case IH 70 (14) - MOUNTING BRACKETS & CLAMPS, 730, 732, 740, 742, 830, 832, 840 & 842 TRACS. (82) - FRONT LOADER & BUCKET

1

T50036

BRACKET

MOUNTING BRACKET - right rear (Order T51255 and T51256), Serial Range: -12598

1шт.

2

T51256

BRACKET

MOUNTING BRACKET - right rear, Start Serial: 12598

1шт.

3

T50035

BRACKET

MOUNTING BRACKET - left rear (Order T51255 and T51256), Serial Range: -12598

1шт.

4

T51255

BRACKET

MOUNTING BRACKET - left rear, Start Serial: 12598

1шт.

5

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex (Grade 5)

6шт.

6

13-10136

CAPSCREW,Hex, 5/8" - 11 x 8 1/2", Gr 5

BOLT - 5/8 x 8-1/2" NC hex (Grade 5)

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

8

25-1010

NUT,5/8"-11, G5

10шт.

9

T50034

MOUNTING BRACKET - right front

1шт.

10

T50033

MOUNTING BRACKET - left front

1шт.

11

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

12

95-10

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

25-1010

NUT,5/8"-11, G5

4шт.

15

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

17

T50037

STRAP - rear axle

4шт.

20

T52187

MOUNTING BRACKET - right rear 430, 470, 530 and 570 standard wheel tractors

1шт.

21

T52186

MOUNTING BRACKET - left rear 430, 470, 530 and 570 standard wheel tractors

1шт.

22

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex (Grade 5) 430, 470, 530 and 570 standard wheel tractors

6шт.

23

13-10144

BOLT (MACHINE)

BOLT - 5/8 x 9" NC hex (Grade 5) 430, 470, 530 and 570 standard wheel tractors

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 430, 470, 530 and 570 Standard wheel tractors 5/8"

10шт.

25

25-1010

NUT,5/8"-11, G5

430, 470, 530 and 570 Standard wheel tractors 5/8"-11, G5

10шт.

26

T52312

MOUNTING BRACKET - right front 430, 470, 530 and 570 standard wheel tractors

1шт.

27

T52311

MOUNTING BRACKET - left front 430, 470, 530 and 570 standard wheel tractors

1шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

430, 470, 530 and 570 Standard wheel tractors Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

29

95-10

WASHER,5/8"

- 1-3/4 x 1-11/16" x 10 gauge 430, 470, 530 and 570 standard wheel tractors

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 430, 470, 530 and 570 Standard wheel tractors 5/8"

4шт.

31

25-1010

NUT,5/8"-11, G5

430, 470, 530 and 570 Standard wheel tractors 5/8"-11, G5

4шт.

32

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

430, 470, 530 and 570 standard wheel tractors Hex, 3/4"-10 x 2", G5

8шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 430, 470, 530 and 570 Standard wheel tractors 3/4"

8шт.

34

T52188

SPACER - rear axle 430, 470, 530 and 570 standard wheel tractors

2шт.
