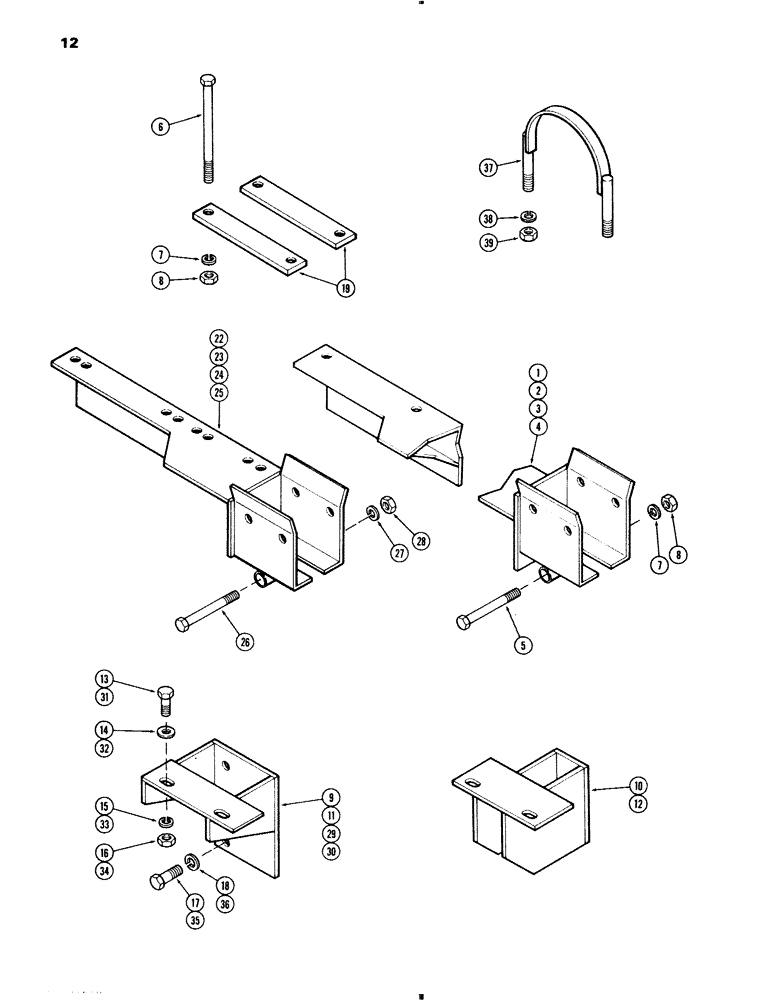

Запчасти Case IH 70 (12) - MOUNTING BRACKETS & CLAMPS, 931, 941 & 1031 GENERAL PURPOSE TRACS. W/ DUAL OR ADJUSTABLE FRONT AXLE (82) - FRONT LOADER & BUCKET

1

T50043

BRACKET

MOUNTING BRACKET - right rear (Order T51251 and T51252), Serial Range: -12598

1шт.

2

T51252

BRACKET

MOUNTING BRACKET - right rear, Start Serial: 12598

1шт.

3

T50044

BRACKET

MOUNTING BRACKET - left rear (Order T51251 and T51252), Serial Range: -12598

1шт.

4

T51251

BRACKET

MOUNTING BRACKET - left rear, Start Serial: 12598

1шт.

5

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex 3/8 (Grade 5)

6шт.

6

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

8

25-1010

NUT,5/8"-11, G5

10шт.

9

T50034

MOUNTING BRACKET - right front, Serial Range: -12598

1шт.

10

T50048

MOUNTING BRACKET - right front, Start Serial: 12598

1шт.

11

T50033

MOUNTING BRACKET - left front, Serial Range: -12598

1шт.

12

T50047

MOUNTING BRACKET - left front, Start Serial: 12598

1шт.

13

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

14

95-10

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

4шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

25-1010

NUT,5/8"-11, G5

4шт.

17

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

19

T50037

STRAP - rear axle

4шт.

22

T50040

MOUNTING BRACKET - rear (Order T51253 and T51254) 930 and 940 western special tractors with standard non adjustable forged axle, Serial Range: -12598

1шт.

23

T51253

MOUNTING BRACKET - rear (Used on RH side) 930 and 940 western special tractors with standard non adjustable forged axle, Start Serial: 12598

1шт.

24

T50041

MOUNTING BRACKET - rear (Order T51253 and T51254) 930 and 940 western special tractors with standard non adjustable forged axle, Serial Range: -12598

1шт.

25

T51254

MOUNTING BRACKET - rear (Used on LH side) 930 and 940 western special tractors with standard non adjustable forged axle, Start Serial: 12598

1шт.

26

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8 x 5-1/2" NC hex (Grade 5) 930 and 940 western special tractors with standard non adjustable forged axle

6шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 930 and 940 Western special tractors with standard non adjustable forged axle 5/8"

6шт.

28

25-1010

NUT,5/8"-11, G5

930 and 940 Western special tractors with standard non adjustable forged axle 5/8"-11, G5

6шт.

29

T50034

MOUNTING BRACKET - right front 930 and 940 western special tractors with standard non adjustable forged axle

1шт.

30

T50033

MOUNTING BRACKET - left front 930 and 940 western special tractors with standard non adjustable forged axle

1шт.

31

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

930 and 940 Western special tractors with standard non adjustable forged axle Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

32

95-10

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge 930 and 940 western special tractors with standard non adjustable forged axle

4шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 930 and 940 Western special tractors with standard non adjustable forged axle 5/8"

4шт.

34

25-1010

NUT,5/8"-11, G5

930 and 940 Western special tractors with standard non adjustable forged axle 5/8"-11, G5

4шт.

35

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

930 and 940 western special tractors with standard non adjustable forged axle Hex, 3/4"-10 x 1 1/2", G5

4шт.

36

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 930 and 940 Western special tractors with standard non adjustable forged axle 3/4"

4шт.

37

T50042

CLAMP - rear axle 930 and 940 western special tractors with standard non adjustable forged axle

2шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 930 and 940 Western special tractors with standard non adjustable forged axle 5/8"

4шт.

39

25-1010

NUT,5/8"-11, G5

930 and 940 Western special tractors with standard non adjustable forged axle 5/8"-11, G5

4шт.
