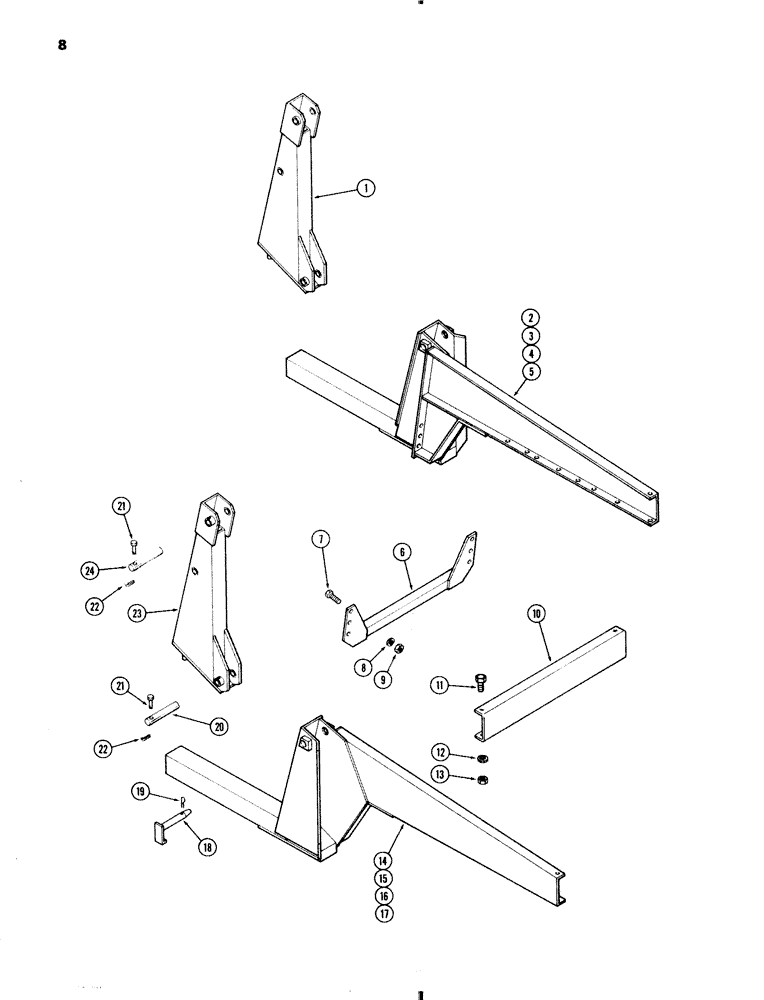

Запчасти Case IH 70 (08) - SUB FRAMES (82) - FRONT LOADER & BUCKET

1

T54562

SUPPORT - left hand

1шт.

2

T54571

FRAME

SUB FRAME - left hand (70QS), Serial Range: -1610126

1шт.

3

T55899

FRAME

SUB FRAME - left hand (70QS), Start Serial: 1610126

1шт.

4

T54561

FRAME

SUB FRAME - left hand (70QL), Serial Range: -1610126

1шт.

5

T55895

FRAME

SUB FRAME - left hand (70QL), Start Serial: 1610126

1шт.

6

T54069

BRACE - cross

1шт.

7

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

129-107

NUT,5/8"-11, G5

4шт.

10

T50052

BUMPER - front

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

T54572

FRAME

SUB FRAME - right hand (70QS), Serial Range: -1610126

1шт.

15

T55900

FRAME

SUB FRAME - right hand (70QS), Start Serial: 1610126

1шт.

16

T54563

FRAME

SUB FRAME - right hand (70QL), Serial Range: -1610126

1шт.

17

T55896

FRAME

SUB FRAME - right hand (70QL), Start Serial: 1610126

1шт.

18

T54068

PIN

- attaching

2шт.

19

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

2шт.

20

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2"

2шт.

21

T50008

PIN

- clevis

4шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

23

T54564

SUPPORT - right hand

1шт.

24

T50017

PIN

- 1-1/8 x 5"

2шт.
