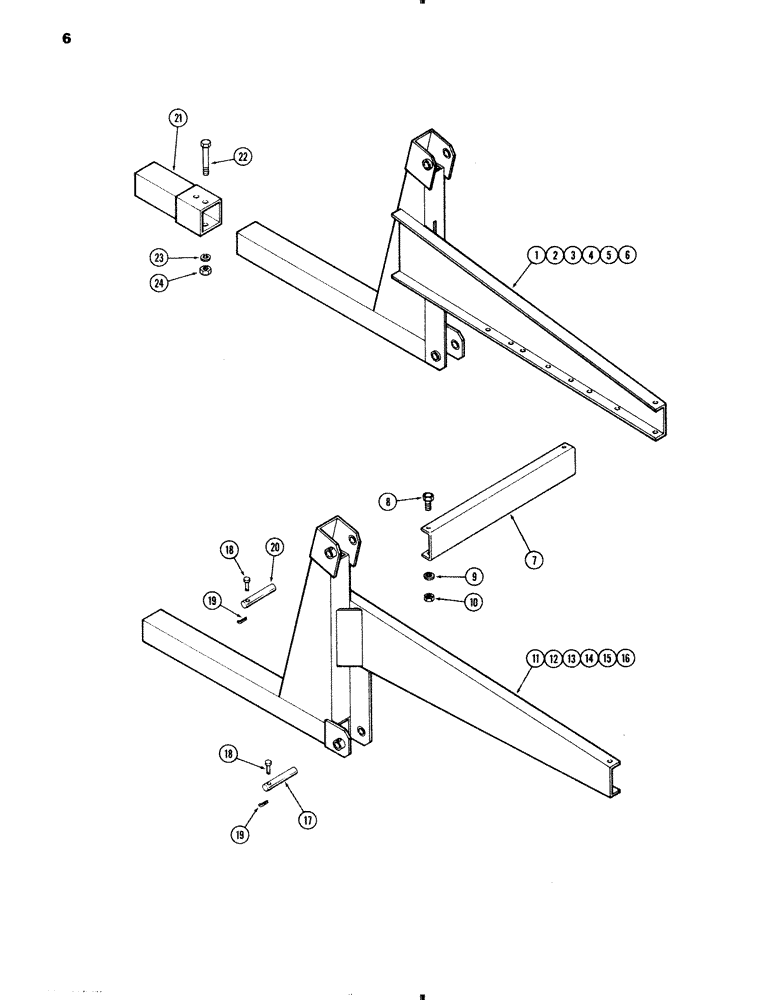

Запчасти Case IH 70 (06) - SUB FRAMES, 70L, 70S AND 70U (82) - FRONT LOADER & BUCKET

1

T50049

SUB FRAME - left hand (70S), Serial Range: -1610126

1шт.

2

T55880

SUB FRAME - left hand (70S), Start Serial: 1610126

1шт.

3

T52193

SUB FRAME - left hand (70L), Serial Range: -1610126

1шт.

4

T55887

SUB FRAME - left hand (70L), Start Serial: 1610126

1шт.

5

T52195

SUB FRAME - left hand (70U), Serial Range: -1610126

1шт.

6

T55883

SUB FRAME - left hand (70U), Start Serial: 1610126

1шт.

7

T50052

BUMPER - front

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

11

T50050

SUB FRAME - right hand (70S), Serial Range: -1610126

1шт.

12

T55881

SUB FRAME - right hand (70S), Start Serial: 1610126

1шт.

13

T52192

SUB FRMAE - right hand (70L), Serial Range: -1610126

1шт.

14

T55888

SUB FRAME - right hand (70L), Start Serial: 1610126

1шт.

15

T52194

SUB FRAME - right hand (70U), Serial Range: -1610126

1шт.

16

T55884

SUB FRAME - right hand (70U), Start Serial: 1610126

1шт.

17

T50017

PIN

- 1-1/8 x 5"

2шт.

18

T50008

PIN

- clevis

4шт.

19

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

20

T50016

PIN

- 1-1/8 x 6-1/2"

2шт.

21

T90808

EXTENSION - sub frame (Machinery Item), Includes: Ref. 22 - 24

2шт.

22

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

4шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

129-107

NUT,5/8"-11, G5

4шт.
