(02) - MAIN FRAMES, 70L, 70S AND 70U

Запчасти Case IH 70 (02) - MAIN FRAMES, 70L, 70S AND 70U (82) - FRONT LOADER & BUCKET

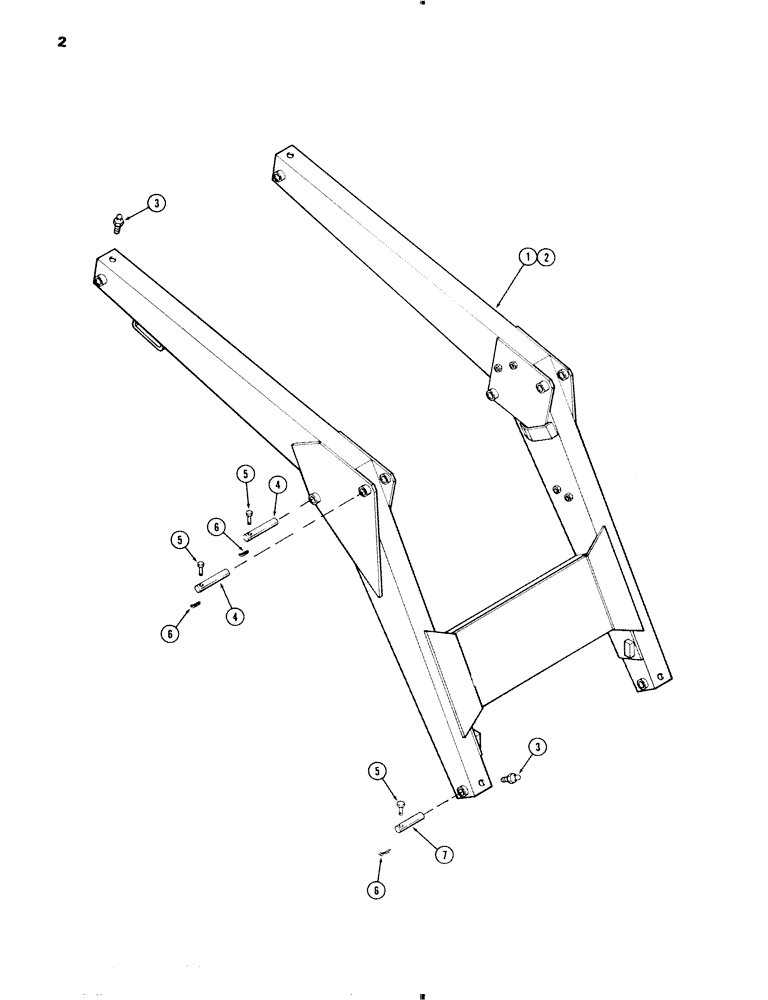

Схема запчастей Case IH 70 - (02) - MAIN FRAMES, 70L, 70S AND 70U (82) - FRONT LOADER & BUCKET
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T50051

FRAME - main, Serial Range: -1610126

1шт.

2

T55879

FRAME - main, Start Serial: 1610126

1шт.

3

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

4

T50086

PIN

- 1-1/8 x 5/3/8"

4шт.

5

T50008

PIN

- clevis

6шт.

6

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

7

T50016

PIN

- 1-1/8 x 6-1/2"

2шт.
