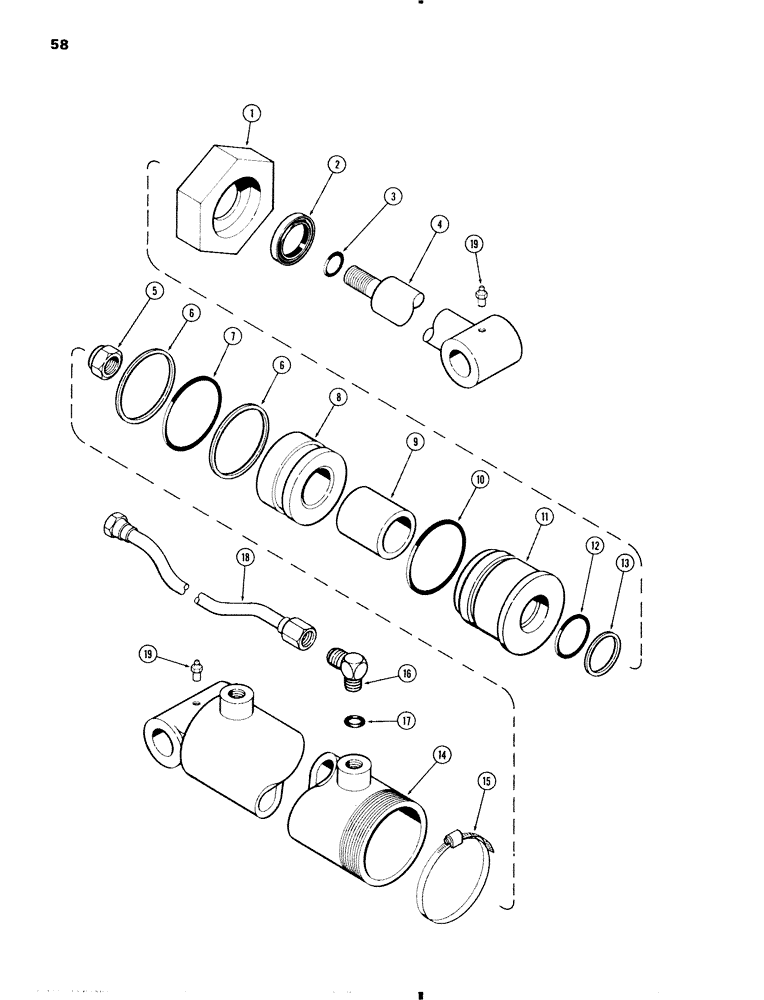

Запчасти Case IH 70 (58) - LIFT CYLINDER, 70L, 70S AND 70U, USED BEFORE SN 1610126 (35) - HYDRAULIC SYSTEMS

T51784

CYLINDER

- lift complete, Includes: Ref. 1 - 14

2шт.

1

T50089

CAP

HEAD CAP

1шт.

2

T29759

SEAL - wiper lip type

1шт.

Part of P/N T51786 Seal Kit

1шт.

3

D32114

O-RING,0.75" ID x 0.875" OD

- 3/4 x 7/8 x 1/16"

1шт.

Part of P/N T51786 Seal Kit

1шт.

4

T51787

ROD

piston, with welded eye, 43.38, Serial Range: 1-3/4-end

1шт.

5

131-909

LOCK NUT,3/4"-16

NUT - piston rod

1шт.

6

B17297

SPECIAL WASHER

SEAL - back-up

2шт.

Part of P/N T51786 Seal Kit

1шт.

7

T55074

SEAL

O-RING - 2-1/8 x 2-1/2 x 3/16"

1шт.

Part of P/N T51786 Seal Kit

1шт.

8

T50090

PISTON

- (Order B17273)

1шт.

9

T50092

SPACER

1шт.

10

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 2-1/4 x 2-1/2 x 1/8"

1шт.

Part of P/N T51786 Seal Kit

1шт.

11

T50088

HEAD

- cylinder

1шт.

12

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 ID x 9/64"

1шт.

Part of P/N T51786 Seal Kit

1шт.

13

B17326

BACK-UP RING

SEAL - back-up

1шт.

Part of P/N T51786 Seal Kit

1шт.

14

T50100

TUBE - cylinder 12" L

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - cylinder

2шт.

16

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSY - 90 deg., Includes: Ref. 17

2шт.

18

T50058

TUBE,19.062" L

- hydraulic

2шт.

19

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

T51786

SEAL KIT

KIT seal, Replaces: T50095, Includes: Ref. 2, 3, 6, 7, 10, 12 and 13

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
