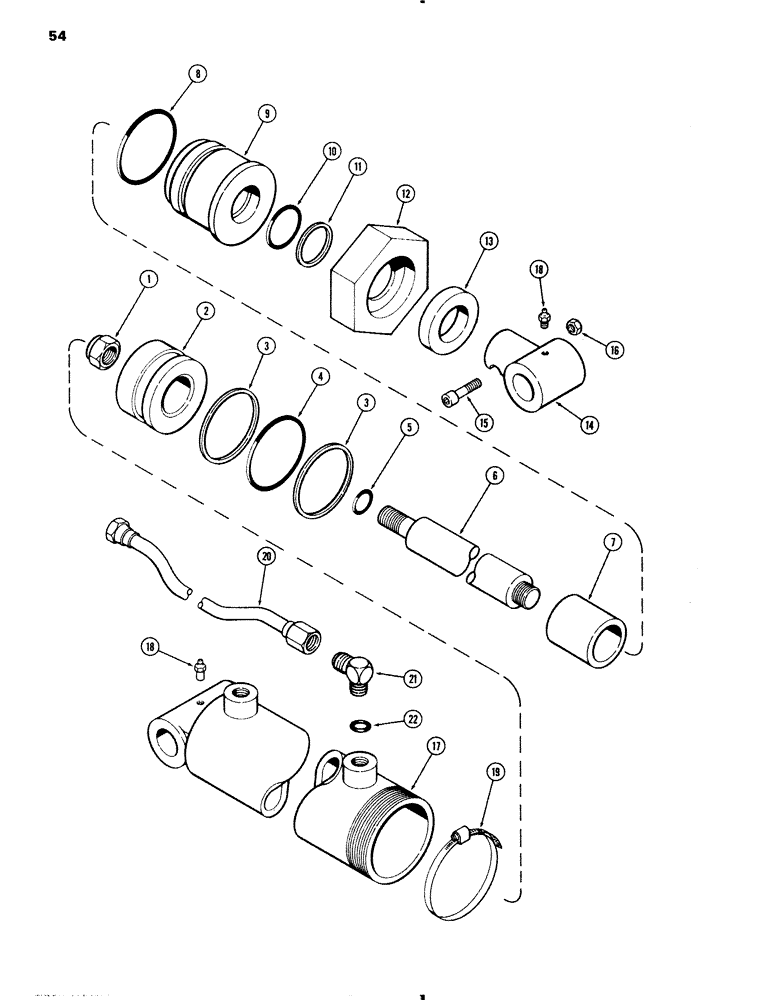

Запчасти Case IH 70 (54) - LIFT CYLINDER, 70L, 70S AND 70U, USED BEFORE SN 1610126 (35) - HYDRAULIC SYSTEMS

T50085

CYLINDER

lift, complete, Replaced by T51784, Includes: Ref. 1 - 17

2шт.

1

25-1112

NUT,3/4"-16, G5

piston rod

1шт.

2

T50090

PISTON

order B17273

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL back-up

2шт.

Part of P/N T50095 Seal Kit

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N T50095 Seal Kit

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N T50095 Seal Kit

1шт.

6

T50099

ROD piston, with screw on eye

1шт.

7

T50092

SPACER

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N T50095 Seal Kit

1шт.

9

T50088

HEAD

cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of P/N T50095 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL back-up

1шт.

Part of P/N T50095 Seal Kit

1шт.

12

T50089

CAP

HEAD CAP

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL wiper lip type

1шт.

Part of P/N T50095 Seal Kit

1шт.

14

T50098

EYE

piston rod

1шт.

15

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

CAPSCREW hex, socket head, 3/8 x 1-1/2" NC

1шт.

16

25-106

NUT,3/8"-16, G5

hex, 3/8" NC

1шт.

17

T50100

TUBE cylinder 12" L

1шт.

18

219-15

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight drive, 5/16"

4шт.

19

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP cylinder

2шт.

20

T50058

TUBE,19.062" L

hydraulic

2шт.

21

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSY., 90 deg., Includes: Ref. 22

2шт.

T50095

KIT

seal, Includes: Ref. 3 - 5, 8, 10, 11 and 13, use T51786

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5/8 x 13/16 x 3/32"

1шт.
