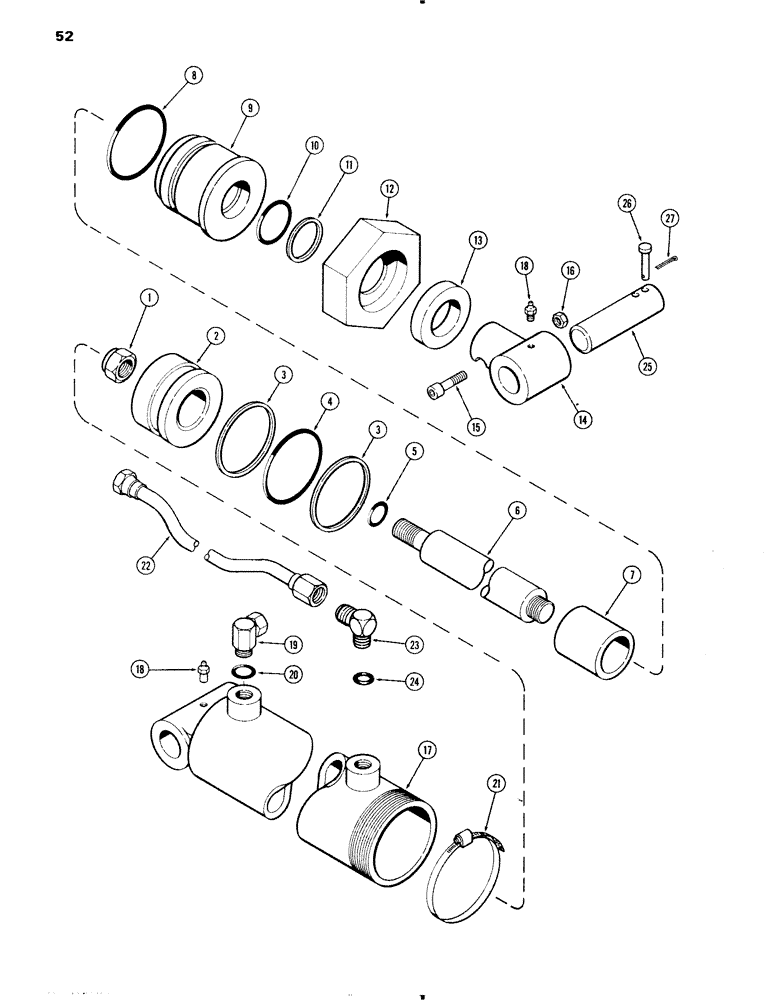

Запчасти Case IH 70 (52) - BUCKET CYLINDER, 70L, 70S AND 70U, USED BEFORE SN 1610126 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
T50084
CYLINDER bucket, complete, Replaced by T51783, Includes: Ref. 1 - 17
2шт.
1
25-1112
NUT,3/4"-16, G5
piston rod
1шт.
2
T50090
PISTON
order B17273
1шт.
3
NSS
NOT SOLD SEPARAT
SEAL back-up
2шт.
Part of P/N T50095 Seal Kit
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING
1шт.
Part of P/N T50095 Seal Kit
1шт.
5
NSS
NOT SOLD SEPARAT
O-RING
1шт.
Part of P/N T50095 Seal Kit
1шт.
6
T50091
ROD piston, with screw on eye
1шт.
7
T50092
SPACER
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING
1шт.
Part of P/N T50095 Seal Kit
1шт.
9
T50088
HEAD
cylinder
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING
1шт.
Part of P/N T50095 Seal Kit
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL back-up
1шт.
Part of P/N T50095 Seal Kit
1шт.
12
T50089
CAP
HEAD CAP
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL, wiper lip type
1шт.
Part of P/N T50095 Seal Kit
1шт.
14
T50098
EYE
piston rod
1шт.
15
61-624
HEX SOC SCREW,3/8"-16 x 1 1/2"
CAPSCREW hex, socket head, 3/8 x 1-1/2" NC
1шт.
16
25-106
NUT,3/8"-16, G5
hex, 3/8" NC
1шт.
17
T50097
TUBE
cylinder
1шт.
18
219-15
LUBE NIPPLE,5/16" NPTF
FITTING grease, straight drive, 5/16"
4шт.
19
218-5203
90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem
ASSY., 90 deg., Includes: Ref. 20
2шт.
21
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
CLAMP cylinder
2шт.
22
T50063
TUBE,0.625" OD x 25" L
hydraulic
2шт.
23
218-5117
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB
ASSY., 90 .deg., Includes: Ref. 24
2шт.
25
T53912
PIN
piston rod to bucket, 1-1/8 x 6-1/2"
2шт.
26
T50008
PIN
clevis
2шт.
27
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
T50095
KIT
seal, Includes: Ref. 3 - 5, 8, 10, 11 and 13, use T51786
1шт.
20
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
5/8 x 13/16 x 3/32"
1шт.
24
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
5/8 x 13/16 x 3/32"
1шт.
