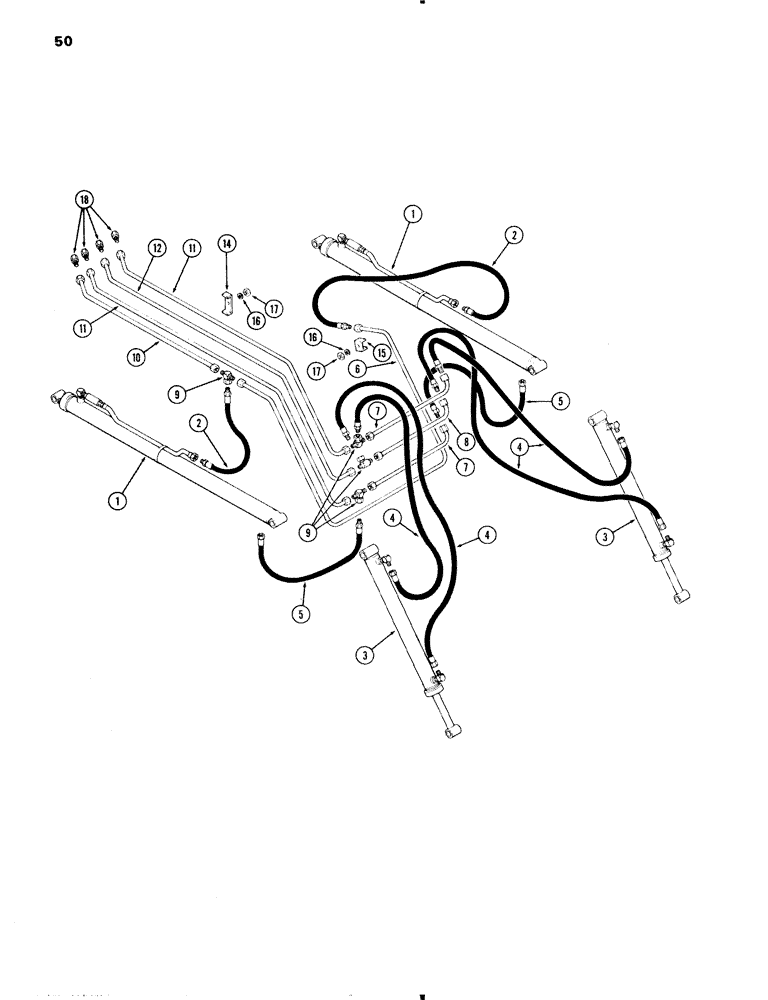

Запчасти Case IH 70 (50) - HYDRAULIC TUBES AND HOSE ASSEMBLIES, USED SERIAL NO. 1610126 AND AFTER 70Q (35) - HYDRAULIC SYSTEMS

1

T54566

CYLINDER

- lift (See Figure 67)

2шт.

2

T55943

HOSE

- 1/2 x 19"

2шт.

3

T55636

CYLINDER

- bucket (See Figure 61)

2шт.

4

T55867

HOSE

- 1/2 x 26"

4шт.

5

T55868

HOSE

- 1/2 x 28"

2шт.

6

T55862

TUBE,0.625" OD

- hydraulic

1шт.

7

T55861

TUBE ASSY.,0.625" OD x 28.125, 3" L

TUBE - hydraulic

2шт.

8

T55858

TUBE,0.625" OD x 25.5, 2.5" L

- hydraulic

1шт.

9

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

- 7/8"

4шт.

10

T55860

TUBE,0.625" OD x 29.5, 3" L

- hydraulic

1шт.

11

T55857

TUBE ASSY.,40.5" L

TUBE - hydraulic

2шт.

12

T55859

TUBE,0.625" OD

- hydraulic

1шт.

14

T53116

CLAMP

- tube

4шт.

15

T50064

CLAMP

- tube

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

18

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING - 1/2 x 7/8"

4шт.
