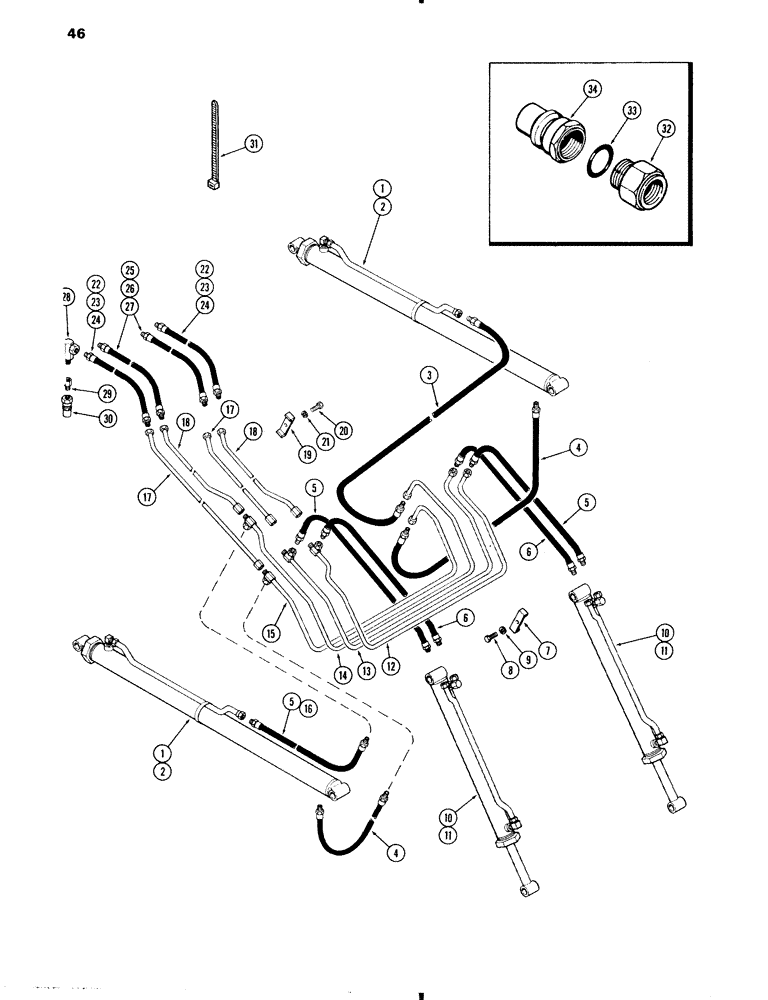

Запчасти Case IH 70 (46) - HYDRAULIC TUBES AND HOSE ASSEMBLIES, USED BEFORE SERIAL NO. 1610126 (35) - HYDRAULIC SYSTEMS

1

T50085

CYLINDER

- lift (See Figure 55) (Order T51784)

2шт.

2

T51784

CYLINDER

- lift (See Figure 59)

2шт.

3

T50494

HOSE - 3/8 x 20"

1шт.

4

T50054

HOSE - 3/8 x 23"

2шт.

5

T50055

HOSE - 3/8 x 22" (70L, 70S and 70U)

3шт.

5

T50055

HOSE - 3/8 x 22" (70Q)

2шт.

6

T50053

HOSE - 3/8 x 26"

2шт.

7

T50064

CLAMP

- tube

8шт.

8

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

T50084

CYLINDER - bucket (See Figure 53) (Order T51783)

2шт.

11

T51783

CYLINDER

- bucket (See Figure 57)

2шт.

12

T50059

TUBE,0.625" OD

- hydraulic

1шт.

13

T50060

TUBE,0.625" OD x 34.25, 27.375" L

- hydraulic

1шт.

14

T50061

TUBE,0.625" OD

- hydraulic

1шт.

15

T50062

TUBE,0.625" OD

- hydraulic

1шт.

16

T54560

HOSE - 3/8 x 18" (70Q)

1шт.

17

T50057

TUBE,36.25, 1.234" L

- hydraulic

2шт.

18

T50056

TUBE - hydraulic 31.5, .875" L

2шт.

19

NLS

NO LONGER SERVICED

- tube

1шт.

20

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

T50019

HOSE - 3/8 x 126" (70S and 70L)

2шт.

23

T52210

HOSE - 3/8 x 96" (70U)

2шт.

24

T54630

HOSE

- 3/8 x 160" (70Q)

2шт.

25

T50018

HOSE - 3/8 x 118" (70S and 70L)

2шт.

26

T52211

HOSE - 3/8 x 36" (70U)

2шт.

27

T53113

HOSE - 3/8 x 144" (70Q)

2шт.

28

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 90 deg. (70L, 70S and 70Q)

4шт.

28

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- 90 deg. (70U)

2шт.

29

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- breakaway coupling

4шт.

30

A28541

COUPLING, BREAK AWAY

PLUG - breakaway (See Figure 69)

4шт.

31

T54520

STRAP

- nylon tie 3/16 x 11"

4шт.

32

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

- 1/2 x 7/8" (For ASAE standard female couplers), Includes: Ref. 33

4шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.

34

A147889

COUPLING, BREAK AWAY

COUPLER - male (For ASAE standard female couplers) (See Figure 75)

4шт.
