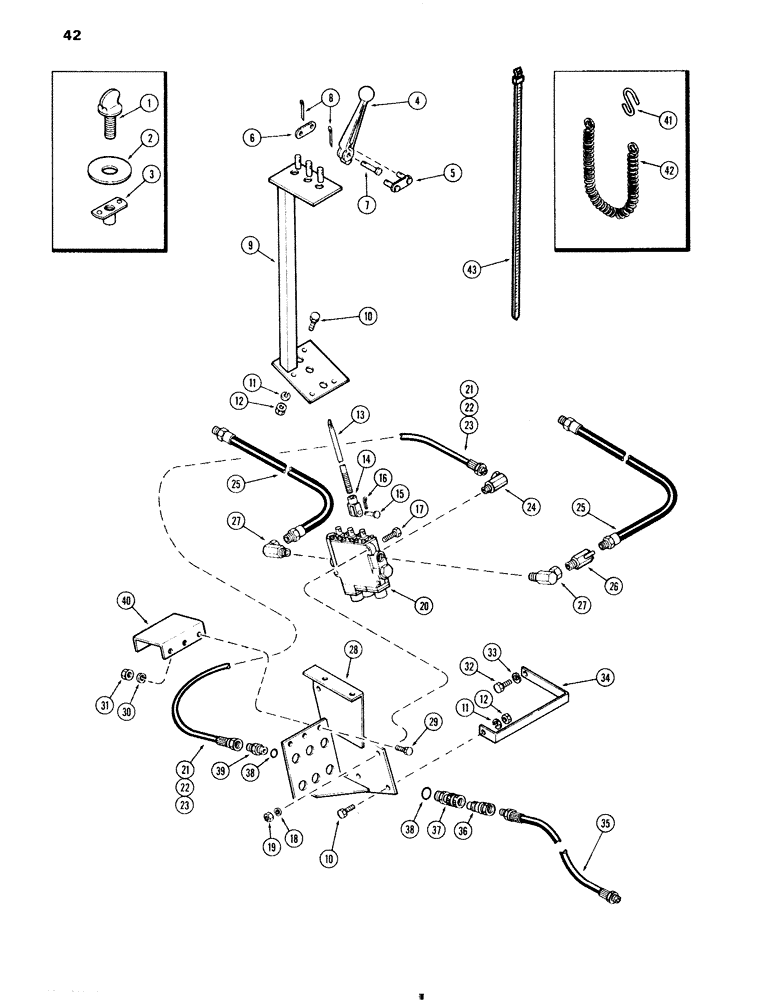

Запчасти Case IH 70 (42) - CAB CONSOLE CONTROL, 70Q (35) - HYDRAULIC SYSTEMS

1

T53406

SCREW - thumb

1шт.

2

195-103

WASHER,5/16"

- 7/8 x 3/8" x 14 gauge

1шт.

3

T53407

NUT - tee

1шт.

B17217

KIT

HANDLE ASSY - control with bracket (Not illustrated), Includes: Ref. 4 - 8

3шт.

4

B17216

HANDLE

- control

1шт.

B17218

BRACKET

- handle (On valve) (Not illustrated)

1шт.

B17215

PIN

KIT - pin (Not illustrated), Inlcudes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

LINK ASSY - handle

1шт.

6

W13738

LINK

- handle

1шт.

7

W13867

CLEVIS

PIN - clevis 3/16 x 1-1/4"

1шт.

8

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

9

T54016

CONSOLE - cab

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

13

T54018

ROD - tie

3шт.

14

T53336

CLEVIS - tie rod

3шт.

15

W13867

CLEVIS

PIN - clevis 3/16 x 1-1/4"

3шт.

16

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

20

T53143

VALVE

- control (See Figure 45)

1шт.

21

T55527

HOSE - hydraulic 24" (Order T55528)

2шт.

22

T55528

HOSE - hydraulic 25"

2шт.

23

T55224

HOSE - hydraulic 26"

2шт.

24

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2" x 90 deg.

8шт.

25

T50080

HOSE - hydraulic 3/8 x 72" (To valve)

2шт.

26

T53145

CHECK VALVE

VALVE - check

1шт.

27

218-928

FITTING - swivel 1/2 x 3/4" x 90 deg.

2шт.

28

T55524

MOUNT - valve

1шт.

29

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

32

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

34

T55526

BRACE - support

1шт.

35

T52210

HOSE - hydraulic 3/8 x 96" (To loader)

6шт.

36

R35915

FITTING

TIP - coupler male

6шт.

37

T55530

COUPLER - female (Bulkhead mounted)

6шт.

38

195-112

WASHER,1 1/4" x 2 3/4" x .164"

- 2-3/4 x 1-1/4 x 11/64"

12шт.

39

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING - 1/2 x 7/8"

6шт.

40

T55525

GUARD - mud

1шт.

41

T54066

CHAIN (AG)

HOOK - spring retaining

1шт.

42

T55529

SPRING

- hose hanger

1шт.

43

T54520

STRAP

- nylon tie 3/16 x 11"

5шт.
