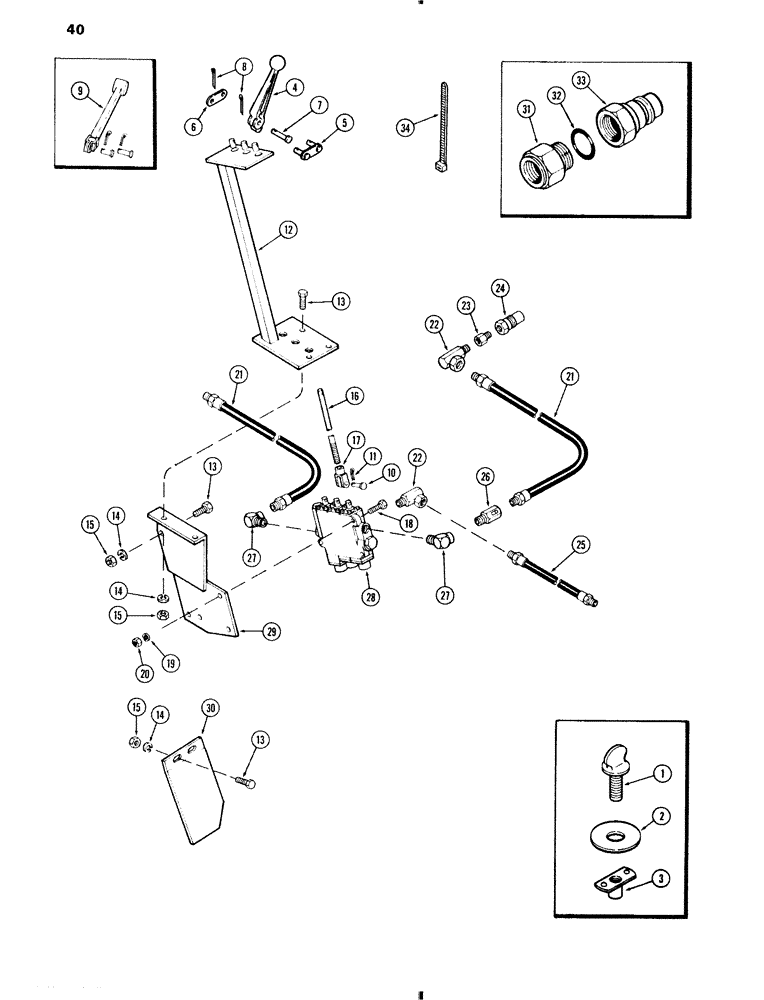

Запчасти Case IH 70 (40) - CAB CONSOLE CONTROL, 70L AND 70S (35) - HYDRAULIC SYSTEMS

1

T53406

SCREW - thumb

1шт.

2

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8 x 3/8" x 14 gauge

1шт.

3

T53407

NUT - tee

1шт.

B17217

KIT

HANDLE ASSY - control with bracket (Not illlustrated), Includes: Ref. 4 - 8

3шт.

4

B17216

HANDLE

- control

1шт.

B17218

BRACKET

- handle (On valve) (Not illustrated)

1шт.

B17215

PIN

KIT - pin (Not illustrated), Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

LINK ASSY - handle

1шт.

6

W13738

LINK

- handle

1шт.

7

W13867

CLEVIS

PIN - clevis 3/16 x 1-1/4"

1шт.

8

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

9

W13736

HANDLE

- valve (Order B17217)

3шт.

10

W13867

CLEVIS

PIN - clevis 3/16 x 1-1/4"

3шт.

11

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

12

T54016

CONSOLE - cab

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

7шт.

14

92-6

LOCK WASHER,3/8"

7шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

7шт.

16

T54018

ROD - tie

3шт.

17

T53336

CLEVIS - tie rod

3шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

21

T50080

HOSE - 3/8 x 72", Serial Range: (Valve-tractor)

2шт.

22

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2" x 90 deg.

8шт.

23

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- breakaway coupling

2шт.

24

A28541

COUPLING, BREAK AWAY

PLUG - breakaway (See Figure 69)

2шт.

25

T50079

HOSE - 3/8 x 60" (Valve to loader and third cylinder tubes)

6шт.

26

T53145

CHECK VALVE

VALVE - check

1шт.

27

218-928

FITTING - swivel 1/2 x 3/4" x 90 deg.

2шт.

28

T53143

VALVE

- control (See Figure 45)

1шт.

29

T54017

MOUNT - valve

1шт.

30

T53335

GUARD - mud

1шт.

31

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

- 1/2 x 7/8" (For ASAE standard female couplers), Includes: Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.

33

A147889

COUPLING, BREAK AWAY

COUPLER - male (For ASAE standard female couplers) (See Figure 75)

2шт.

34

T54520

STRAP

- nylon tie 3/16 x 11"

2шт.
