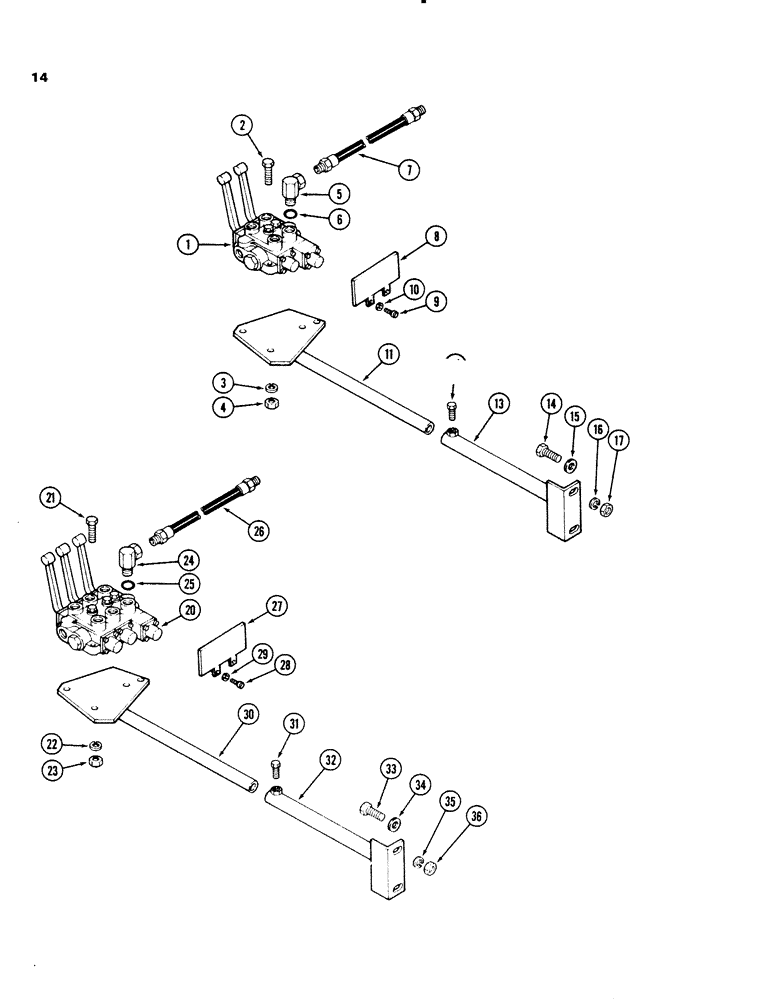

Запчасти Case IH 66L (14) - TWO SPOOL CONTROL VALVE AND HOSES (35) - HYDRAULIC SYSTEMS

1

T57496

VALVE

- control (See Figure 17)

1шт.

2

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT - 3/4" NC hex

3шт.

5

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 6

4шт.

7

T54431

HYDRAULIC HOSE,0.50" ID x 48.00"

0.50" ID x 48.00"

4шт.

8

T57543

MOUNTING PARTS

MOUNT - decal

1шт.

9

82-547

SCREW - machine 1/4 x 1/2" NC pan head

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

T53404

MOUNTING PARTS

MOUNT - valve upper (Order T53566)

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

13

T53405

MOUNTING PARTS

MOUNT - valve lower

1шт.

14

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

15

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge

2шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

129-107

NUT,5/8"-11, G5

2шт.

20

T57495

VALVE

- control (See Figure 19), three spool control valve and hoses

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Three spool control valve and hoses Hex, 3/8"-16 x 2", G5

3шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 3 spool control valve and hoses 3/8"

3шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 3 spool control valve and hoses 3/8"-16, G5

3шт.

24

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 25, three spool control valve and hoses

6шт.

26

T54431

HYDRAULIC HOSE,0.50" ID x 48.00"

- Three spool control valve and hoses 0.50" ID x 48.00"

4шт.

27

T57543

MOUNTING PARTS

MOUNT - decal, three spool control valve and hoses

1шт.

28

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine 1/4 x 1/2" NC pan head, three spool control valve and hoses

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , 3 spool control valve and hoses 1/4"

2шт.

30

T53404

MOUNTING PARTS

MOUNT - valve upper (Order T53566), three spool control valve and hoses

1шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3-spool control valve and hoses Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

32

T53405

MOUNTING PARTS

MOUNT - valve lower, three spool control valve and hoses

1шт.

33

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3 spool control valve and hoses Hex, 5/8"-11 x 2", G5

2шт.

34

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge, three spool control valve and hoses

2шт.

35

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 3 spool control valve and hoses 5/8"

2шт.

36

129-107

NUT,5/8"-11, G5

3 spool control valve and hoses 5/8"-11, G5

2шт.

T57874

SUPPORT

valve support, three spool control valve and hoses

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm), three spool control valve and hoses

1шт.
