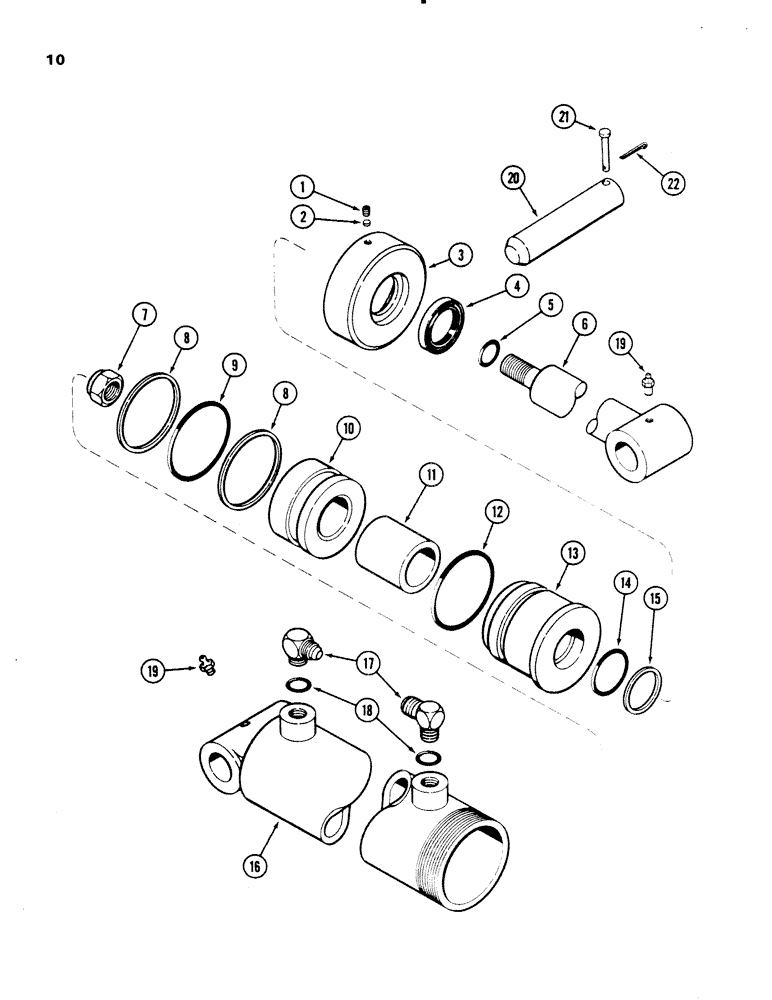

Запчасти Case IH 66L (10) - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

T55636

CYLINDER

- bucket 2-1/2" (63.5 mm) complete, Includes: Ref. 1 - 16

2шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4 x 1/4" socket head

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of Seal Kit, P/N T51786

1шт.

3

T50089

CAP

HEAD CAP

1шт.

4

A41785

WIPER SEAL

WIPER - rod

1шт.

Part of Seal Kit, P/N T51786

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 1 x 3/4 x 1/8" (25.4 x 19.1 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T51786

1шт.

6

T51785

ROD

- piston, O.D. 1-1/2" x 37.38 long

1шт.

7

131-909

LOCK NUT,3/4"-16

NUT - piston rod 3/4" NF

1шт.

8

B17297

SPECIAL WASHER

SEAL - backup

2шт.

Part of Seal Kit, P/N T51786

1шт.

9

T55074

SEAL

O-RING - 2-1/2 x 2-1/8 x 3/16" (63.5 x 54.0 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T51786

1шт.

10

B17273

PISTON

1шт.

11

T55637

SPACER

1шт.

12

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 2-1/2 x 2-1/4 x 1/8" (63.5 x 57.2 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T51786

1шт.

13

T50088

HEAD

- cylinder

1шт.

14

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 mm)

1шт.

Part of Seal Kit, P/N T51786

1шт.

15

B17326

BACK-UP RING

SEAL - backup

1шт.

Part of Seal Kit, P/N T51786

1шт.

16

T50097

TUBE

- cylinder

1шт.

17

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY, Includes: Ref. 18

4шт.

19

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

20

T50016

PIN

- bucket 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

21

T50008

PIN

- clevis

2шт.

22

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

T51786

SEAL KIT

KIT - seal, Includes: Ref. 2, 4, 5, 8, 9, 12, 14 and 15

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
