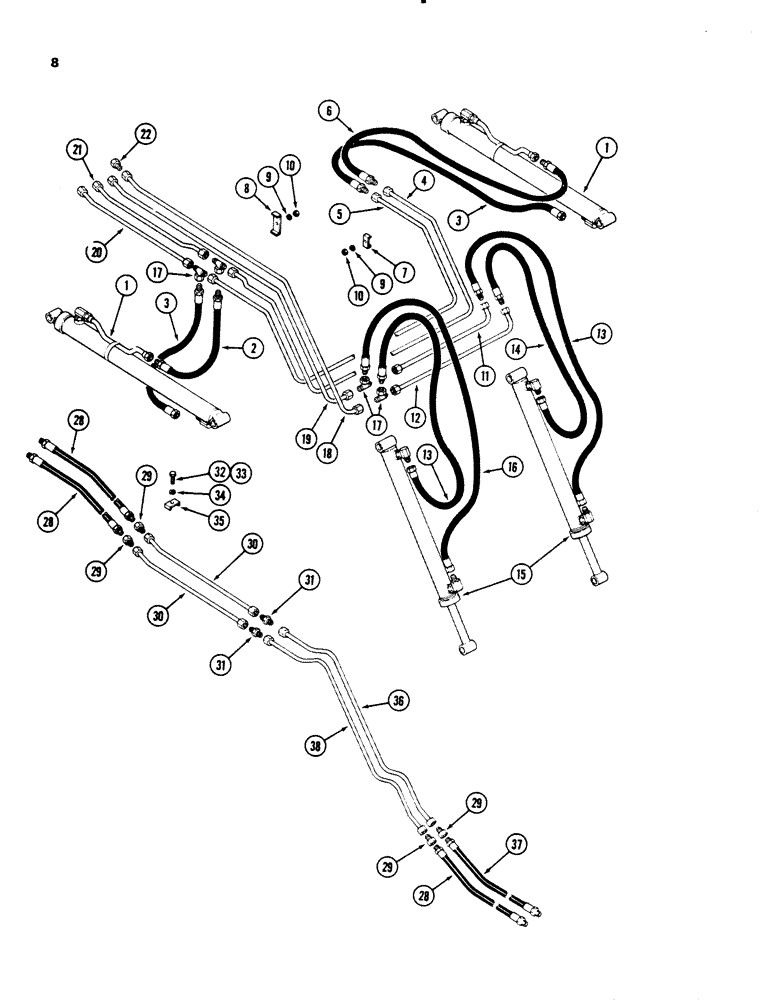

Запчасти Case IH 66L (08) - HYDRAULIC TUBES AND HOSE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

T53947

CYLINDER

- lift (See Figure 13)

2шт.

2

36523

HOSE ASSY.

HOSE - 1/2 x 19" (12.7 x 482.6 mm)

1шт.

3

T55951

HOSE - 1/2 x 18" (12.7 x 457.2 mm)

2шт.

4

T57473

TUBE ASSY.,0.625" OD

TUBE - hydraulic

1шт.

5

T57472

TUBE ASSY.,0.625" OD

TUBE - hydraulic

1шт.

6

NLS

NO LONGER SERVICED

HOSE - 1/2 x 16" (12.7 x 406.4 mm)

1шт.

7

T50064

CLAMP

- tube

1шт.

8

T53116

CLAMP

- tube

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

11

T55861

TUBE ASSY.,0.625" OD x 28.125, 3" L

TUBE - hydraulic

1шт.

12

T55967

TUBE,30.5, 3" L

- hydraulic

1шт.

13

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- 1/2 x 26" (12.7 x 660.4 mm)

2шт.

14

T55953

HYDRAULIC HOSE

HOSE - 1/2 X 22" (12.7 x 558.8 mm)

1шт.

15

T55636

CYLINDER

- bucket (See Figure 11)

2шт.

16

L13746

HOSE

- 1/2 x 24-1/2" (12.7 x 622.3 mm)

1шт.

17

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

FITTING - hydraulic tube

4шт.

18

T55857

TUBE ASSY.,40.5" L

TUBE - hydraulic

1шт.

19

T55859

TUBE,0.625" OD

- hydraulic

1шт.

20

T55860

TUBE,0.625" OD x 29.5, 3" L

- hydraulic

1шт.

21

T57475

TUBE ASSY.,0.625" OD x 28.25, 3" L

TUBE - hydraulic

1шт.

22

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING - tube 7/8 to 1/2"

4шт.

28

T57487

HOSE ASSY.

HOSE - 1/2 x 60" (12.7 x 1524.0 mm), 3rd cyl kit

3шт.

29

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

FITTING - tube 7/8 to 1/2", 3rd cyl kit

4шт.

30

T55860

TUBE,0.625" OD x 29.5, 3" L

- hydraulic rear, 3rd cyl kit

2шт.

31

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FITTING - union 7/8", 3rd cyl kit

2шт.

32

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3rd cylinder kit Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

33

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3rd cylinder kit Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder kit 5/16"

3шт.

35

T50064

CLAMP

- tube, 3rd cyl kit

3шт.

36

T57484

TUBE ASSY.,0.625" OD

TUBE - hydraulic, 3rd cyl kit

1шт.

37

T57486

HOSE ASSY.

HOSE - 1/2 X 72" (12.7 x 1828.8 mm), 3rd cyl kit

1шт.

38

T57485

TUBE ASSY.

TUBE - hydraulic, 3rd cyl kit

1шт.
