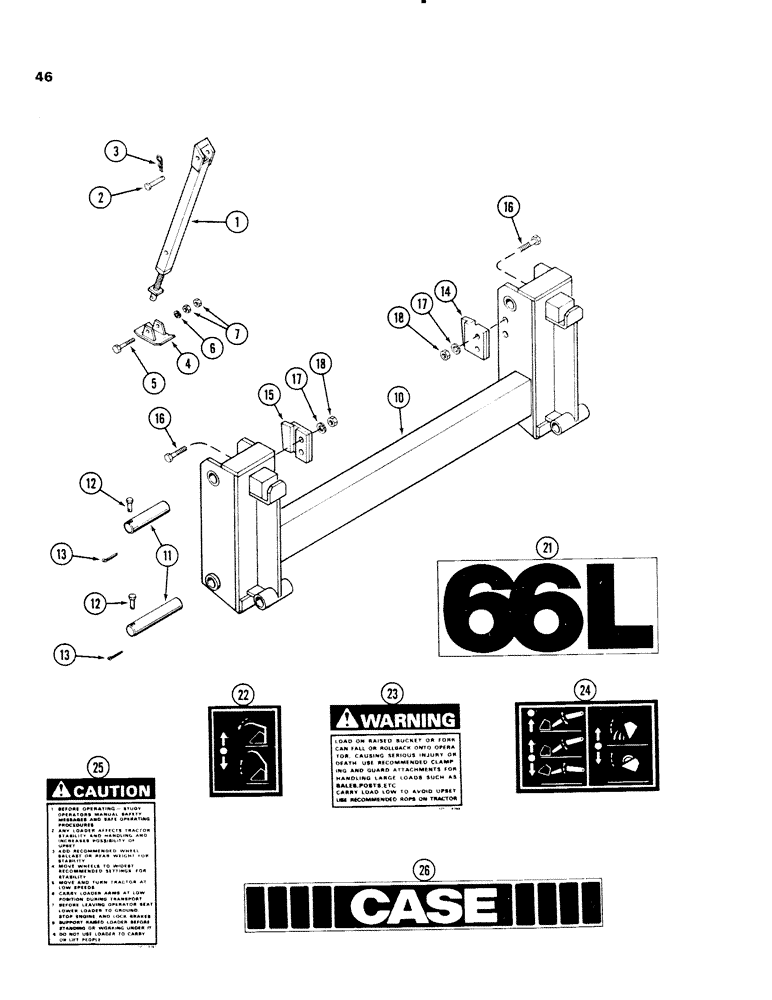

Запчасти Case IH 66L (46) - PARKING STAND (82) - FRONT LOADER & BUCKET

1

T57474

STAND

- parking

2шт.

2

H120683

PIN,15.88mm OD x 94.06mm L

- clevis

2шт.

3

T54573

PIN

COTTER

2шт.

4

T54570

FOOT

SUPPORT - stand

2шт.

5

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

T88312

ASSEMBLY - connecting (Machinery Item), attachment bracket, Includes: Ref. 11 - 13

1шт.

11

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm), attachment bracket

4шт.

12

T50008

PIN

- clevis, attachment bracket

4шт.

13

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Attachment bracket 1/8" x 3/4"

4шт.

14

T57060

STOP

- LH roll back limit, attachment bracket

1шт.

15

T57061

STOP

- RH roll back limit, attachment bracket

1шт.

16

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Attachment bracket Hex, 1/2"-13 x 2", G5

4шт.

17

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Attachment bracket 1/2"

4шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

Attachment bracket 1/2"-13, G5

4шт.

21

321-6332

DECAL

- Model 66L, attachment bracket

2шт.

22

321-6405

DECAL

- Third Cylinder, attachment bracket

1шт.

23

321-6366

DECAL

- Warning, attachment bracket

1шт.

24

321-6404

DECAL

- Loader Valve, attachment bracket

1шт.

25

321-6367

DECAL

- Caution, attachment bracket

1шт.

26

321-6334

DECAL

- Case, attachment bracket

1шт.

321-5634

DECAL - Safety (French) Not shown, attachment bracket

1шт.
