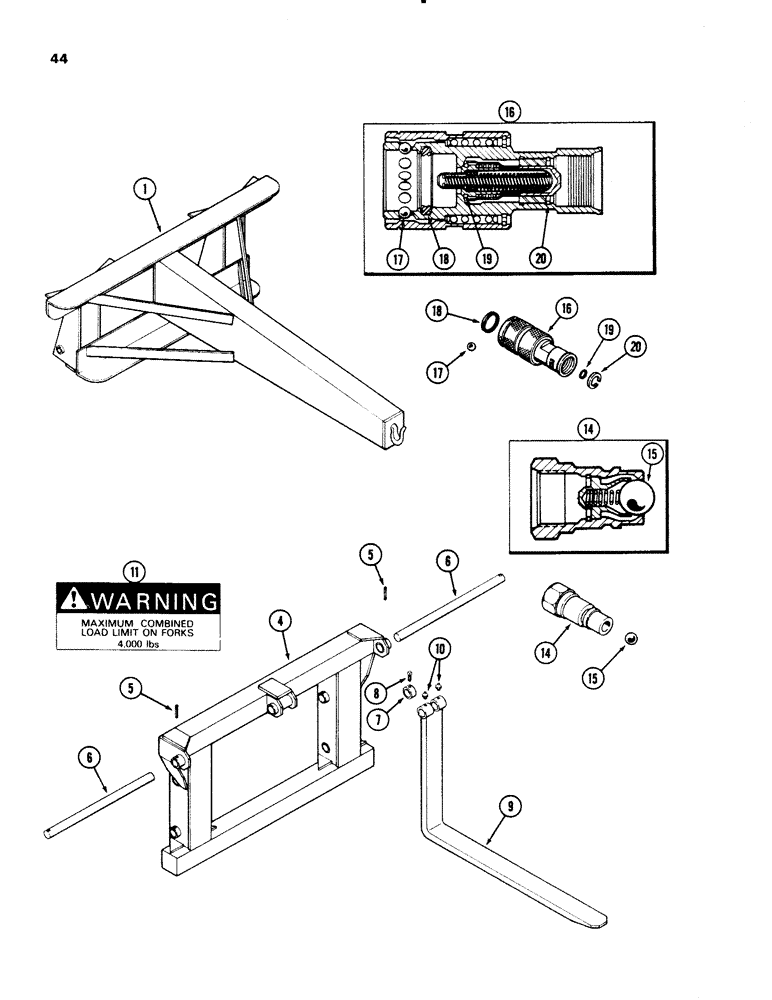

Запчасти Case IH 66L (44) - LIFT BOOM (82) - FRONT LOADER & BUCKET

1

T94861

BOOM - lift (Machinery Item)

1шт.

4

T54639

FRAME

- main, fork lift attactment

1шт.

5

138-325

ROLL PIN - 7/16 x 2-1/4", fork lift attactment

2шт.

6

T54641

PIN

- fork lift attactment

2шт.

7

T54642

BUSHING

fork lift attactment

2шт.

8

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

- 3/8 x 1/2" NC cup point, fork lift attactment

2шт.

9

T54640

TOOTH

fork lift attactment

2шт.

10

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive, fork lift attactment

4шт.

11

321-4735

DECAL

PLATE - decal limit 4000 pounds, fork lift attactment

1шт.

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- drive #6 x 1/4" (Not illustrated), fork lift attactment

2шт.

14

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male, hyd coupling, Includes: Ref. 15

1шт.

15

211-316

BALL,17/32" Dia

- 17/32" (13.5 mm) diameter, hyd coupling

1шт.

16

A147888

BREAKER POINTS

ASSEMBLY - female, hyd coupling, Includes: Ref. 17 - 20

1шт.

17

211-355

BALL

- 3/16" (4.8 mm) diameter (Order 211-5_, hyd coupling

10шт.

A47220

GASKET KIT

KIT - repair (Not illustrated), hyd coupling, Includes: Ref. 18 - 20

1шт.

18

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body, hyd coupling

1шт.

19

A47222

SEAL

- poppet, hyd coupling

1шт.

20

A45603

RING, LOCKING

RING - lock (Order A47220), hyd coupling

1шт.
