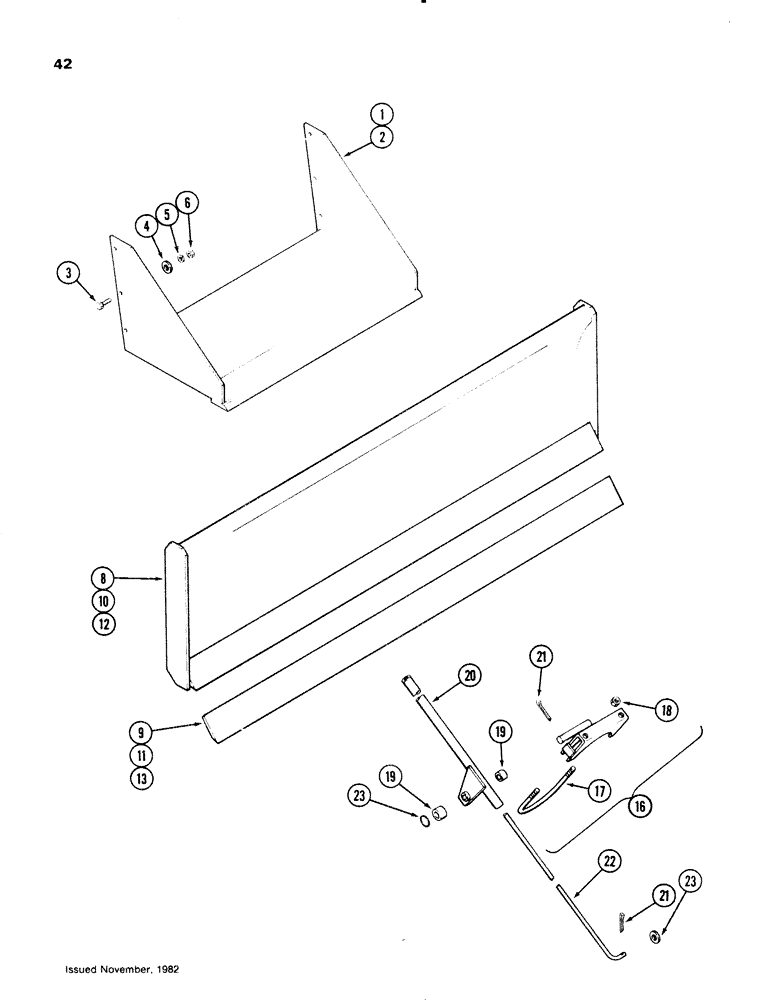

Запчасти Case IH 66L (42) - MANURE FORK DIRT PLATE, 48 INCH (1219.2 MM) (82) - FRONT LOADER & BUCKET

1

T52183

PLATE - dirt, 48" (1219.2 mm)

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

48" (1219.2 mm) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

195-104

WASHER,3/8"

- 1 x 7/16 x 5/64" (25.4 x 11.11 x 1.98 mm), 48" (1219.2 mm)

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 48" (1219.2 mm) 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 48" (1219.2 mm) 3/8"-16, G5

6шт.

2

T52178

PLATE - dirt, 48" (1219.2 mm)

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

48" (1219.2 mm) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

4

195-104

WASHER,3/8"

- 1 x 7/16 x 5/64" (25.4 x 11.11 x 1.98 mm), 48" (1219.2 mm)

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 48" (1219.2 mm) 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 48" (1219.2 mm) 3/8"-16, G5

6шт.

8

T94862

ASSEMBLY - 6 foot (1.8 m) with replaceable blade (Machinery Item), dirt scrapers, Includes: Ref. 9

1шт.

9

T57065

EDGE

BLACE - replaceable 72" (2828.8 mm), 48" (1219.2 mm)

1шт.

10

T94863

ASSEMBLY - 7 foot (2.1 m) with replaceable blade (Machinery Item), 48" (1219.2 mm), Inlcudes: Ref. 11

1шт.

11

T50012

EDGE

BLADE - replaceable 84" (2133.6 mm), 48" (1219.2 mm)

1шт.

12

T94864

ASSEMBLY - 8 foot (2.4 m) with replaceable blade (Machinery Item), 48" (1219.2 mm), Includes: Ref. 13

1шт.

13

T57058

EDGE

BLADE - replaceable 96" (2438.4 mm), 48" (1219.2 mm)

1шт.

16

T55696

CLAMP

ASSEMBLY, bucket level indicator, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

U-BOLT, bucket level indicator

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

Bucket level indicator 5/16"-18, G5

2шт.

19

T57063

SPACER

bucket level indicator

2шт.

20

T55515

SUPPORT TUBE

TUBE - support, bucket level indicator

1шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Bucket level indicator 1/8" x 1"

2шт.

22

T57488

ROD

- indicator, bucket level indicator

1шт.

23

195-106

WASHER,1/2"

- 1-3/8 x 9/16 x 7/64" (34.92 x 14.29 x 2.78 mm), bucket level indicator

2шт.
