Запчасти Case IH 66L (34) - HAY GRAPPLE FORK (82) - FRONT LOADER & BUCKET

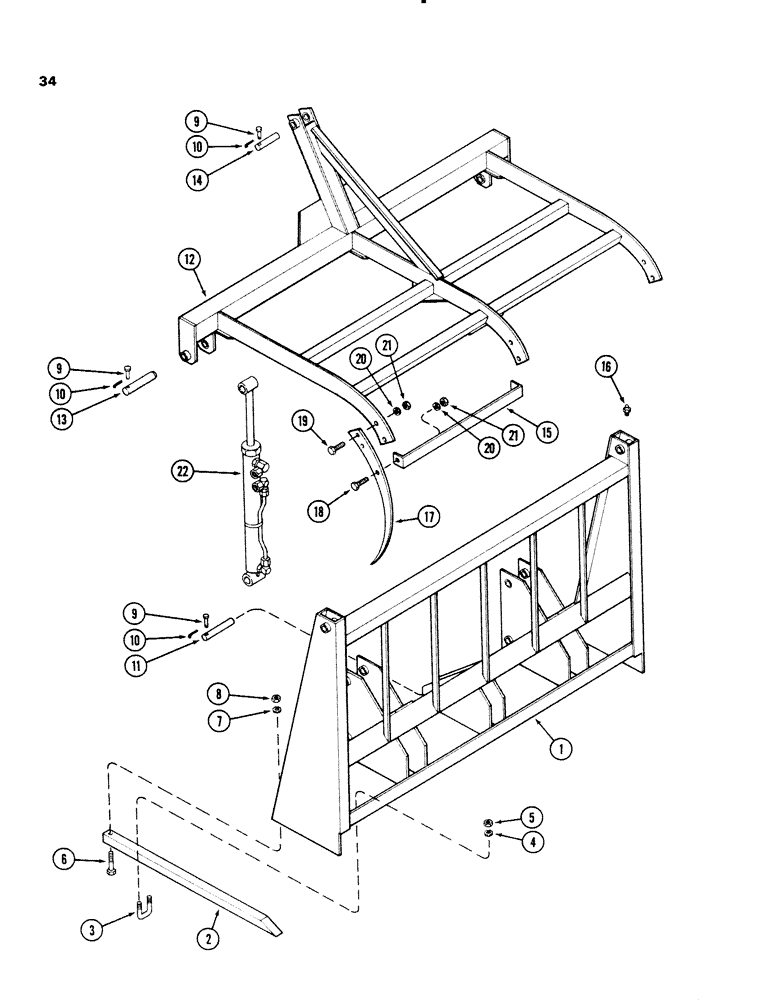

Схема запчастей Case IH 66L - (34) - HAY GRAPPLE FORK (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T53898

FRAME - main

1шт.

2

T53140

TOOTH

10шт.

3

T53900

U-BOLT

10шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.

6

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

10шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

9

T50008

PIN

- clevis

4шт.

10

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

11

T50086

PIN

- 1-1/8 x 5-5/8" (28.6 x 142.9 mm)

1шт.

12

T53899

GRAPPLE

1шт.

13

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

14

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2" (28.6 x 114.3 mm)

1шт.

15

T53901

BRACE

- tie

2шт.

16

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

2шт.

17

T53104

TOOTH

- grapple

3шт.

18

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

3шт.

19

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

20

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

21

129-107

NUT,5/8"-11, G5

9шт.

22

T53098

CYLINDER

- hydraulic 2" (50.8 mm) See Figure 41

1шт.

Выбрано товаров: 22
