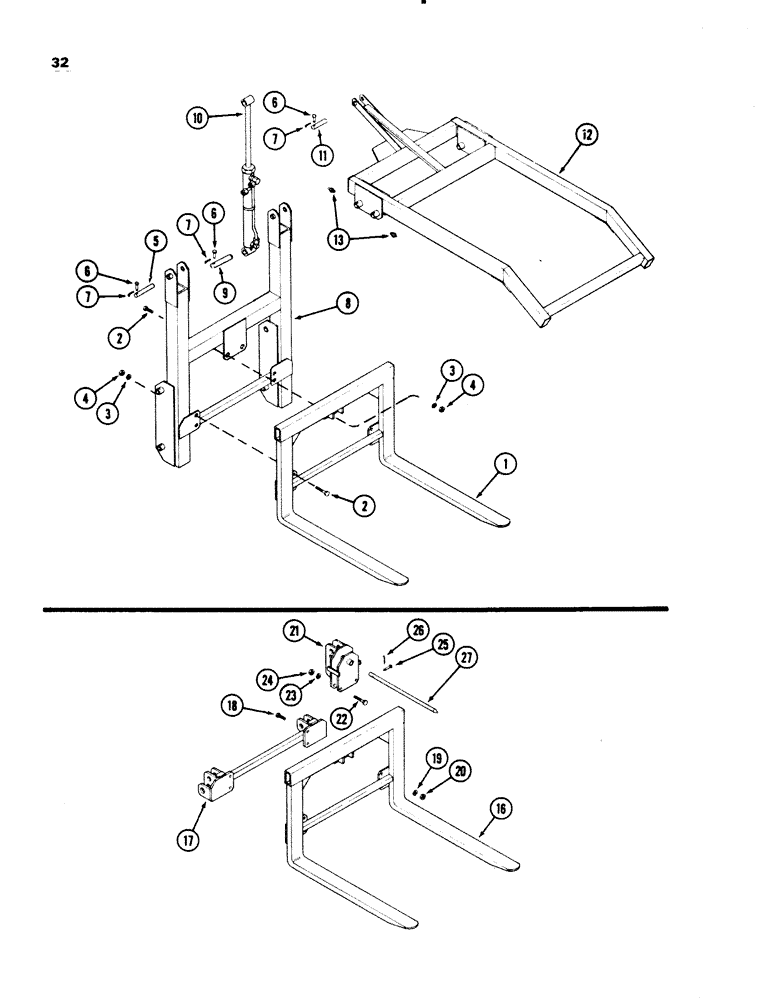

Запчасти Case IH 66L (32) - HAY BALE HANDLER (82) - FRONT LOADER & BUCKET

1

T54057

RACK

1шт.

2

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

4

129-108

NUT,3/4"-10, G5

6шт.

5

T50016

PIN

- 1-1/8 x 6-1/2" (28.6 x 165.1 mm)

2шт.

6

T50008

PIN

- clevis

4шт.

7

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

8

T54059

FRAME - main

1шт.

9

T50086

PIN

- 1-1/8 x 5-5/8" (28.6 x 142.9 mm)

1шт.

10

T53894

CYLINDER ASSY.

CYLINDER - hydraulic 2" (50.8 mm) See Figure 39

1шт.

11

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2" (28.6 x 114.3 mm)

1шт.

12

T54060

ARM

GRAPPLE ARM

1шт.

13

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

16

T54057

RACK

3 point hitch round bale carrier

1шт.

17

T54056

ADAPTER

- lower, 3 point hitch round bale carrier

1шт.

18

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3 point hitch round bale carrier Hex, 3/4"-10 x 2", G5

4шт.

19

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 3 point hitch round bale carrier 3/4"

4шт.

20

129-108

NUT,3/4"-10, G5

3 point hitch round bale carrier 3/4"-10, G5

4шт.

21

T54055

RACK

- upper, 3 point hitch round bale carrier

1шт.

22

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3 point hitch round bale carrier Hex, 3/4"-10 x 4", G5

2шт.

23

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 3 point hitch round bale carrier 3/4"

2шт.

24

129-108

NUT,3/4"-10, G5

3 point hitch round bale carrier 3/4"-10, G5

2шт.

25

T50008

PIN

- clevis, 3 point hitch round bale carrier

1шт.

26

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 3 point hitch round bale carrier 1/8" x 3/4"

1шт.

27

T54058

TOOTH

3 point hitch round bale carrier

1шт.
