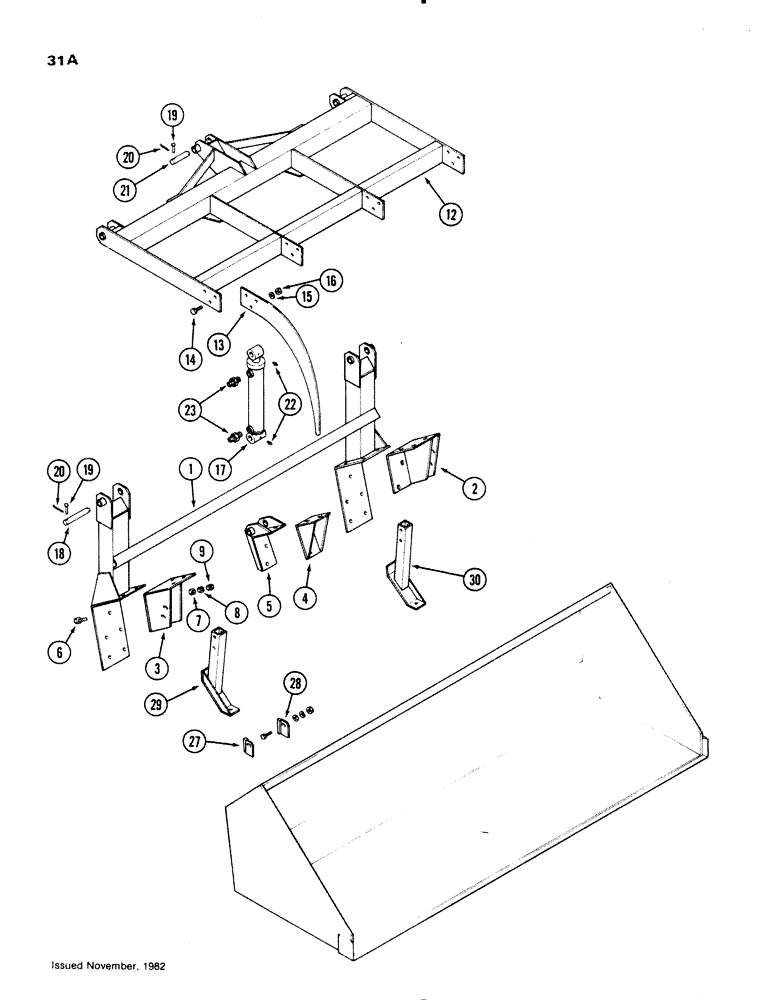

Запчасти Case IH 66L (31A) - GRAPPLE OVER BUCKET, FOUR TOOTH (82) - FRONT LOADER & BUCKET

1

T57737

PEDESTAL

FRAME ASSEMBLY - grapple

1шт.

2

T57838

SUPPORT

ASSEMBLY - grapple, left

1шт.

3

T57837

SUPPORT

ASSEMBLY - grapple, right

1шт.

4

T57740

SUPPORT

- cylinder

1шт.

5

T57839

BRACKET

- cylinder, mounting

1шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

22шт.

7

195-108

WASHER,5/8"

- flat 5/8"

30шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

131-1113

JAM NUT,Jam, 5/8"-11

NUT - 5/8" NC hex lock

26шт.

12

T57743

ARM

ASSEMBLY - grapple swing

1шт.

13

T57745

ROD

TOOTH - grapple

4шт.

14

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

12шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

17

T57744

CYLINDER

ASSEMBLY - hydraulic, 2-1/2 x 9" (See Figure 41B)

1шт.

18

T50016

PIN

- 1-1/8" x 6-1/2"

3шт.

19

T50008

PIN

- 5/16 x 2" clevis

4шт.

20

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

21

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1-1/8 x 4-1/2"

1шт.

22

219-15

LUBE NIPPLE,5/16" NPTF

GREASE FITTING - 5/16" straight

2шт.

23

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

CONNECTOR - straight

2шт.

T57840

ORIFICE

- cylinder (Not Shown)

1шт.

27

T57841

STOP

- roll back

2шт.

28

T57842

STOP

- roll back

2шт.

29

T57843

SUPPORT

- inner, bucket, right

1шт.

30

T57844

SUPPORT

- inner bucket, left

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Not Shown) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5 (Not Shown)

4шт.

195-105

WASHER,7/16"

- 1/2" flat (Not Shown)

4шт.
