Запчасти Case IH 66L (26[1]) - GUARD PLATE, 66 INCH (1676.4 MM) BUCKET (82) - FRONT LOADER & BUCKET

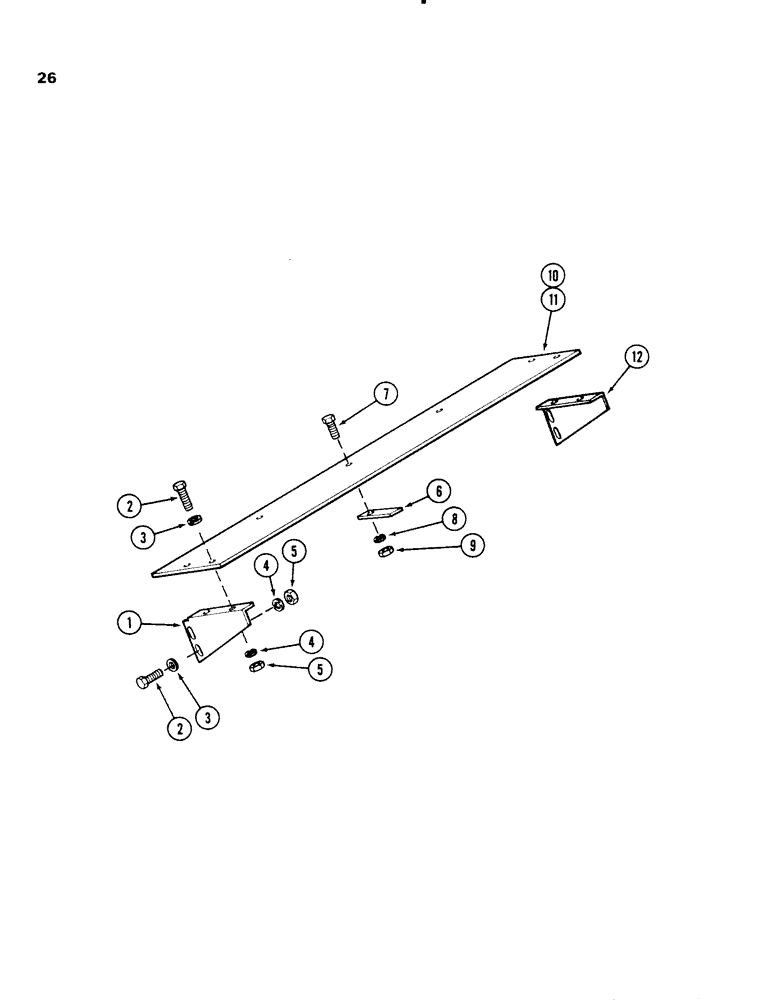

Схема запчастей Case IH 66L - (26[1]) - GUARD PLATE, 66 INCH (1676.4 MM) BUCKET (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T50027

ANGLE

PLATE - end RH

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

3

195-104

WASHER,3/8"

- 1 x 7/16 x 5/64" (25.4 x 11.11 x 1.98 mm)

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

6

T50028

CLAMP

5шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

11

T52180

PLATE - guard

1шт.

12

T50026

PLATE - end, left

1шт.

Выбрано товаров: 11
