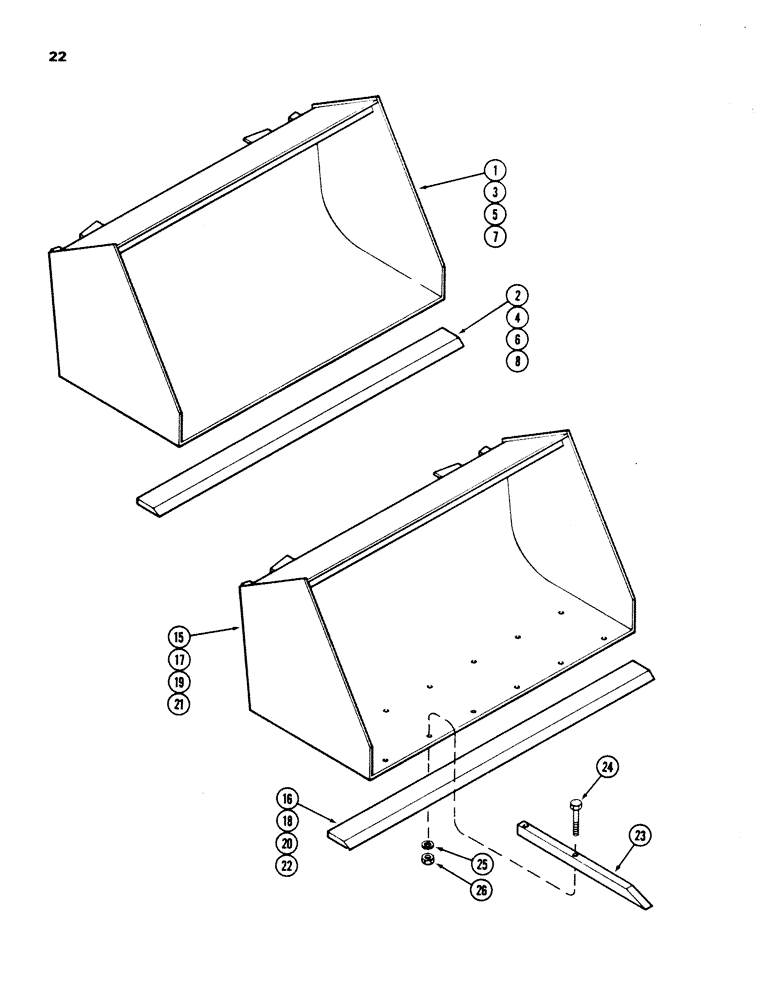

Запчасти Case IH 66L (22) - MATERIAL BUCKETS (82) - FRONT LOADER & BUCKET

1

T95034

BUCKET ASSEMBLY - 60" (1524.0 mm) with replaceable edge (Machinery Item), Includes: Ref. 2

1шт.

2

T50013

EDGE

- replaceable 68" (1727.2 mm)

1шт.

3

T95037

BUCKET ASSEMBLY - 66" (1676.4 mm) with replaceable edge (Machinery Item), Includes: Ref. 4

1шт.

4

T52179

EDGE

- replaceable 74" (1879.6 mm)

1шт.

5

T94845

BUCKET ASSEMBLY - 72" (1828.8 mm) with replaceable edge (Machinery Item), Includes: Ref. 6

1шт.

6

T50014

EDGE

- replaceable 80" (2032.0 mm)

1шт.

7

T94847

BUCKET ASSEMBLY - 83" (2108.2 mm) with replaceable edge (Machinery Item), Includes: Ref. 8

1шт.

8

T50015

EDGE

- replaceable 91" (2311.4 mm)

1шт.

15

T95035

BUCKET ASSEMBLY - 60" (1524.0 mm) drilled for tines with replaceable edge (Machinery Item), material buckets w/ tines, Includes: Ref. 16

1шт.

16

T50013

EDGE

- replaceable 68" (1727.2 mm), material buckets w/ tines

1шт.

23

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 60" (1524.0 mm) bucket (Machinery Item), material buckets w/ tines, Includes: Ref. 24 - 26

8шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

25

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, material buckets w/ tines

2шт.

17

T95038

ASSEMBLY - 66" (1676.4 mm) drilled for tines with replaceable edge (Machinery Item), material buckets w/ tines, Includes: Ref. 18

1шт.

18

T52179

EDGE

- replaceable 74" (1879.6 mm), material buckets w/ tines

1шт.

23

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 66" (1676.4 mm) (Machinery Item), material buckets w/ tines, Includes: Ref. 24 - 26

8шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

25

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, material buckets w/ tines

2шт.

19

T94846

ASSEMBLY - 72" (1828.8 mm) drilled for tines with replaceable edge (Machinery Item), material buckets, Includes: Ref. 20

1шт.

20

T50014

EDGE

- replaceable 80" (2032.0 mm), material buckets w/ tines

1шт.

23

T89091

ASSEMBLY - 24" (609.6 mm) for 72" (1828.8 mm) (Machinery Item), material buckets w/ tines, Includes: Ref. 24 - 26

8шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

25

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, material buckets w/ tines

2шт.

21

T94848

ASSEMBLY - 83" (2108.2 mm) drilled for tines with replaceable edge (Machinery Item), material buckets w/ tines, Includes: Ref. 25

1шт.

25

T50015

EDGE

- replaceable 92" (2311.4 mm), material buckets w/ tines

1шт.

23

T89091

TINE ASSEMBLY - 24" (609.6 mm) for 83" (2108.2 mm) (Machinery Item), material buckets w/ tines, Includes: Ref. 24 - 26

10шт.

TINE IS AVAILABLE T51043

1шт.

24

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Material buckets w/ tines Hex, 3/8"-16 x 2 1/2", G5

2шт.

25

92-6

LOCK WASHER,3/8"

material buckets w/ tines 3/8"

2шт.

26

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, material buckets w/ tines

2шт.
