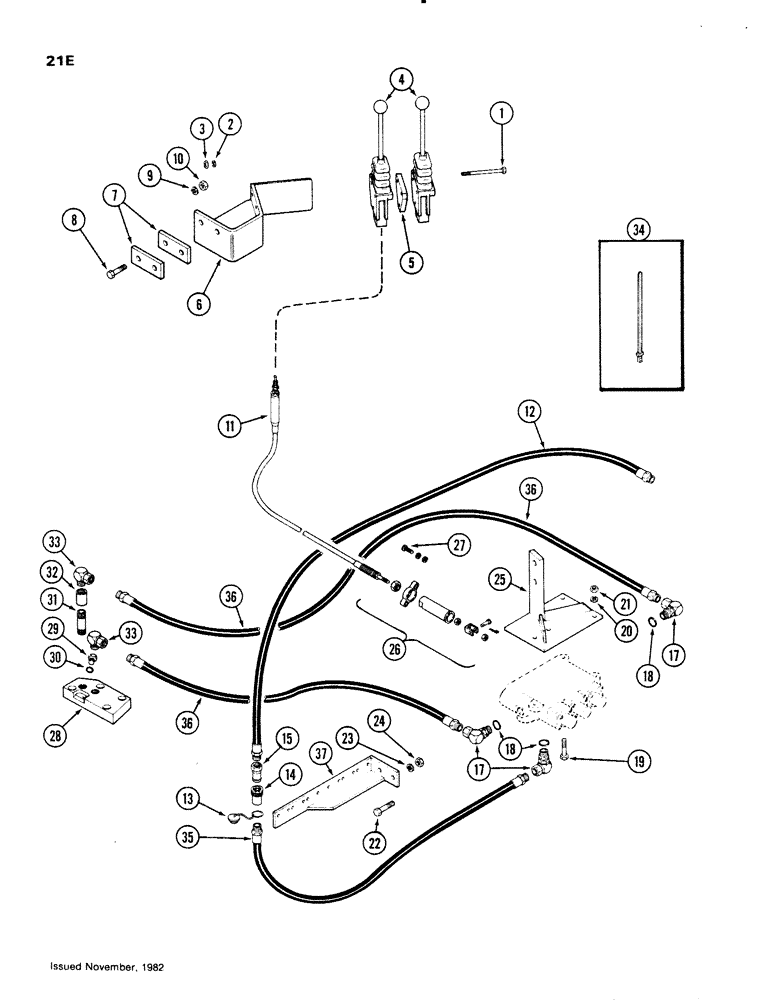

Запчасти Case IH 66L (21E) - CABLE CONTROL, TWO SPOOL, 1690 TWO AND FOUR WHEEL DRIVE TRACTORS WITH CAB (82) - FRONT LOADER & BUCKET

1

113-54

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- 1/4 x 4-1/2" NC hex (Grade 5)

3шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

3

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

4

T57583

CONTROL

HANDLE - cable

2шт.

5

T57587

BAR

SPACER - handle

1шт.

6

T57588

MOUNTING PARTS

MOUNT - valve handle

1шт.

7

T57585

BAR

SUPPORT - spacer

2шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

T57584

CABLE

- 60" (1524.0 mm)

2шт.

12

T57486

HOSE ASSY.

HOSE - 1/2 x 72" (12.7 x 1828.8 mm)

6шт.

13

T57615

PLUG

- coupler

4шт.

14

H49718

COUPLING

COUPLER - female

4шт.

15

H49729

CONNECTOR - straight 1/2 x 7/8" (Not Shown)

4шт.

222-1614

CONNECTOR - stright 1/2 x 7/8" (Not Shown)

4шт.

17

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 18

2шт.

18

215-5006

O-RING - 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.

19

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

22

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

25

T57589

MOUNTING PARTS

MOUNT - valve

1шт.

26

T57586

KIT

- adapter

2шт.

27

182-206

SCREW - machine 1/4 x 1" NC pan head slotted

4шт.

28

T57491

COVER

- valve

1шт.

29

76349

PLUG,9/16" - 18 ORB

Assy, Valve cover, Incl. Ref. 30 Hex Hd, 9/16"-18 ORB

1шт.

30

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 1.98 mm)

1шт.

31

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - pipe 1/2 x 2-1/2"

1шт.

32

221-338

COUPLING,Pipe, 1/2" NPT

COUPLER - pipe 1/2"

1шт.

33

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2 x 1/2"

2шт.

34

T54520

STRAP

- nylon tie

2шт.

35

T57606

HOSE ASSY.

HOSE - 1/2 x 26" (12.7 x 660.4 mm)

4шт.

36

T57629

HOSE

- 1/2 x 126" (12.7 x 3200.4 mm)

2шт.

37

T57608

MOUNTING PARTS

MOUNT - coupler

1шт.
