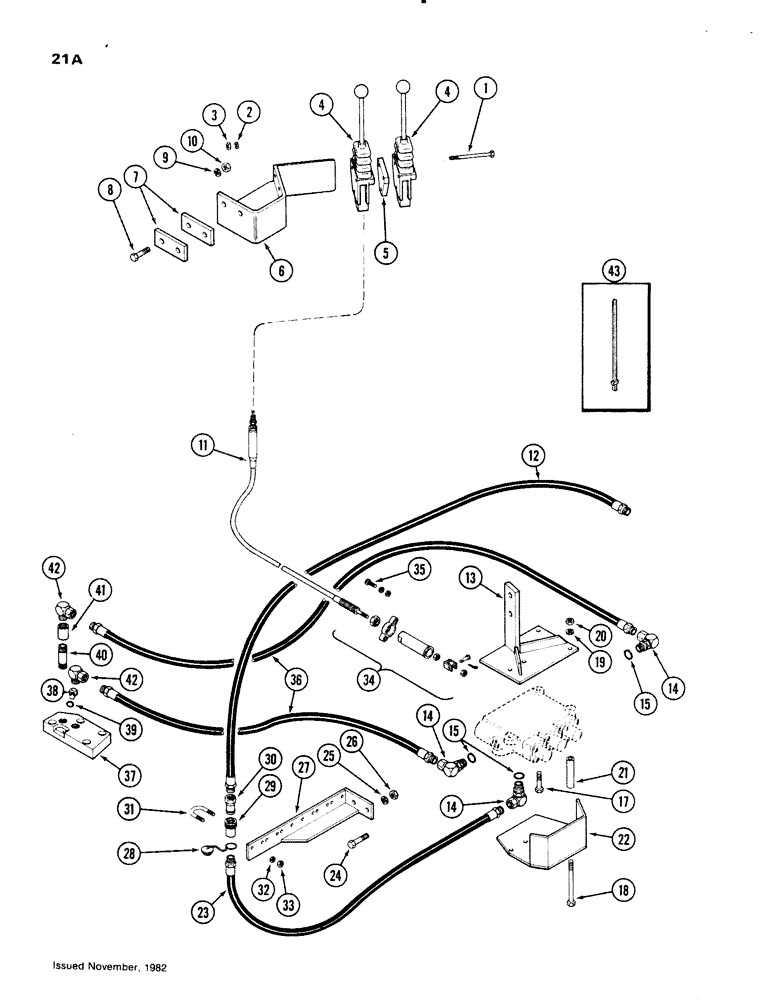

Запчасти Case IH 66L (21A) - CABLE CONTROL, TWO SPOOL, 1490 TWO AND FOUR WHEEL DRIVE TRACTORS WITH CAB (82) - FRONT LOADER & BUCKET

1

113-54

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

- 1/4 x 4-1/2" NC hex (Grade 5)

3шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

3

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

4

T57583

CONTROL

HANDLE - cable

2шт.

NO SERVICE BREAKDOWN ON THIS PART.

1шт.

5

T57587

BAR

SPACER - handle

1шт.

6

T57588

MOUNTING PARTS

MOUNT - valve handle

1шт.

7

T57585

BAR

SUPPORT - spacer

2шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

T57584

CABLE

- 60" (1524.0 mm)

2шт.

12

T54431

HYDRAULIC HOSE,0.50" ID x 48.00"

0.50" ID x 48.00"

4шт.

13

T57614

MOUNTING PARTS

MOUNT - valve

1шт.

14

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Includes: Ref. 15

6шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

113-2239

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

- 3/8 x 5-3/4" NC hex (Grade 5)

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

21

T57607

BUSHING

- spacer

2шт.

22

T57609

MOUNTING PARTS

COVER - valve

1шт.

23

T57606

HOSE ASSY.

HOSE - 1/2 x 26' (12.7 x 660.4 mm)

4шт.

24

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

27

T57608

MOUNTING PARTS

MOUNT - coupler

1шт.

28

T57615

PLUG

- coupler

4шт.

29

H49718

COUPLING

COUPLER - female

4шт.

30

H49726

PUSH-PULL COUPLING

COUPLER - male

4шт.

31

A66788

CLAMP

U-BOLT

4шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

34

T57586

KIT

- adapter

2шт.

35

182-206

SCREW - machine 1/4 x 1" NC pan head slotted

4шт.

36

T57629

HOSE

- 1/2 x 126" (12.7 x 3200.4 mm)

2шт.

37

T57491

COVER

- valve

1шт.

38

76349

PLUG,9/16" - 18 ORB

Assy, Valve cover, Incl. Ref. 39 Hex Hd, 9/16"-18 ORB

1шт.

39

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.9 x 1.98 mm)

1шт.

40

221-1191

PIPE,Nipple, 1/2" NPT x 2 1/2"

NIPPLE - pipe 1/2 x 2-1/2"

1шт.

44

221-338

COUPLING,Pipe, 1/2" NPT

COUPLER - pipe 1/2"

1шт.

42

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

- swivel 1/2 x 1/2"

2шт.

43

T54520

STRAP

- nylon tie

3шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 mm)

1шт.
