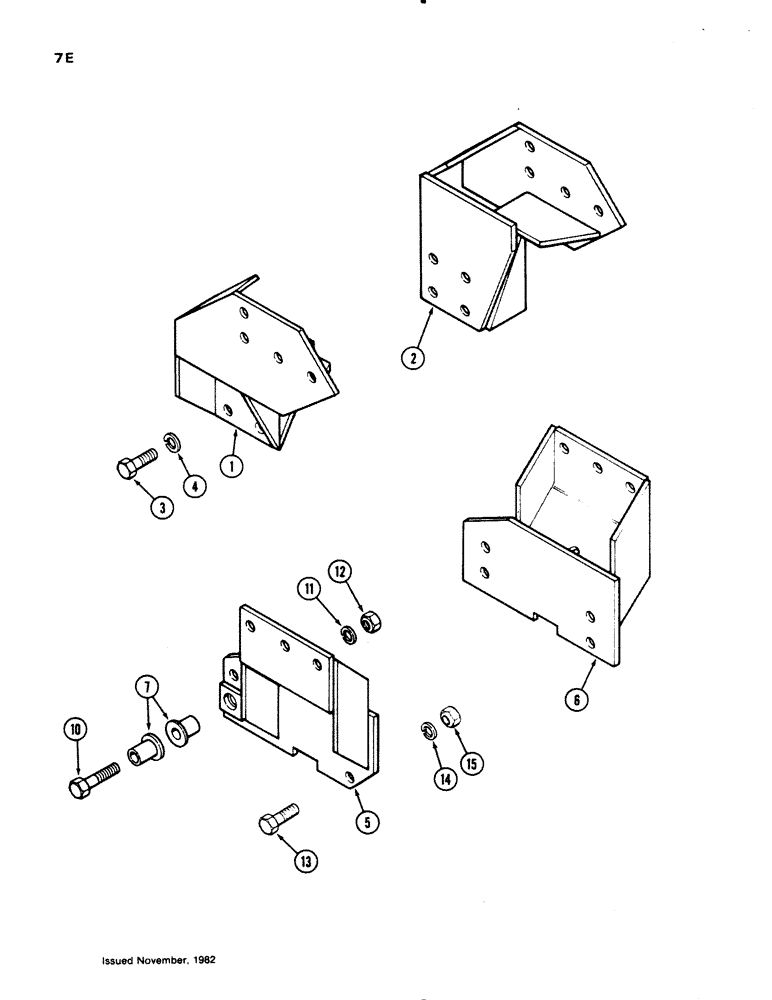

Запчасти Case IH 66L (07E) - MOUNTING BRACKETS, 1290 AND 1410 TWO WHEEL DRIVE WITHOUT CAB (82) - FRONT LOADER & BUCKET

1

T57760

BRACKET

- mounting right rear

1шт.

2

T57759

BRACKET

- mounting left rear

1шт.

3

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

22шт.

5

T57762

BRACKET

- mounting right front

1шт.

6

T57761

BRACKET

- mounting left front

1шт.

7

T53864

BUSHING

- mounting

2шт.

10

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

129-107

NUT,5/8"-11, G5

2шт.

13

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

129-107

NUT,5/8"-11, G5

12шт.
