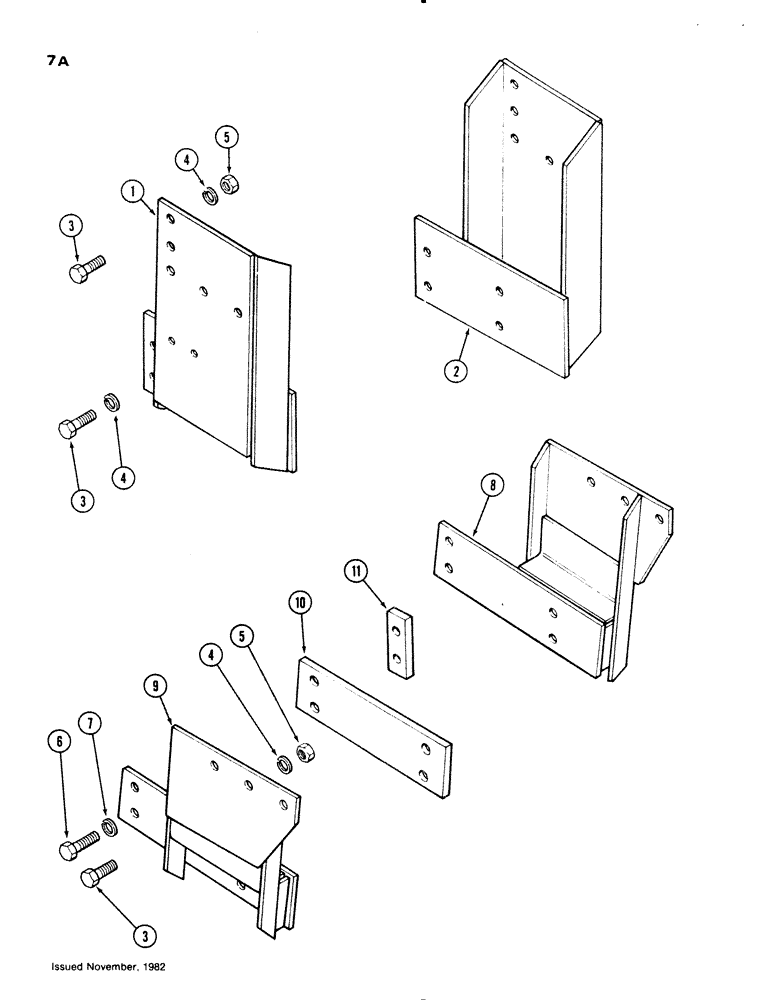

Запчасти Case IH 66L (07A) - MOUNTING BRACKETS, 1490 TWO AND FOUR WHEEL DRIVE TRACTORS WITH OR WITHOUT CAB (82) - FRONT LOADER & BUCKET

1

T57611

BRACKET

- mounting right rear

1шт.

2

T57610

BRACKET

- mounting left rear

1шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

24шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

5

129-107

NUT,5/8"-11, G5

16шт.

6

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

T57612

BRACKET

- mounting right front

1шт.

9

T57613

BRACKET

- mounting left front

1шт.

10

T57482

BAR

- spacer (Used without weight bracket)

2шт.

11

T57483

BAR

- spacer (Used with weight bracket)

2шт.
