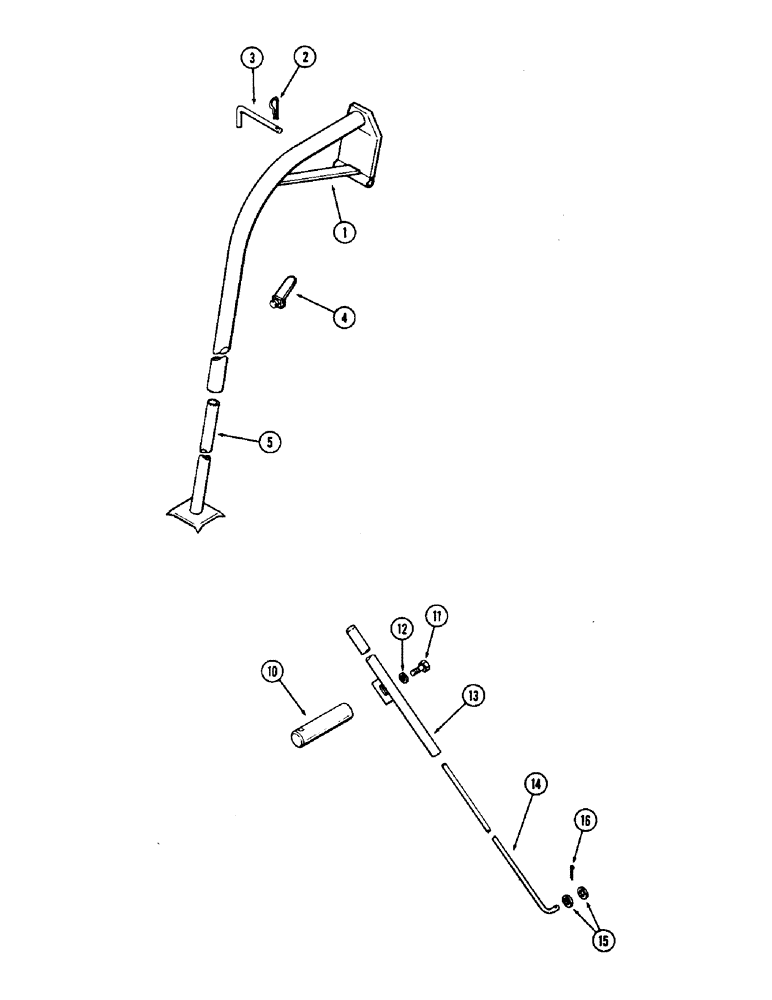

Запчасти Case IH 65 (68) - PARKING STAND, BUCKET LEVEL INDICATOR (82) - FRONT LOADER & BUCKET

1

T53943

PARKING STAND - upper

2шт.

2

T54573

PIN

COTTER - hairpin

2шт.

3

T53945

PIN - attaching

2шт.

4

T53944

HANDLE

LOCK HANDLE

2шт.

5

T50024

PARKING STAND - lower

2шт.

10

T53523

PIN - mounting, bucket level indicator

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bucket level indicator Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , Bucket level indicator 3/8"

1шт.

13

T53525

TUBE - support, bucket level indicator 10" L

1шт.

14

T53524

ROD

- linkage, bucket level indicator

1шт.

15

195-106

WASHER,1/2"

- 1-3/8 x 9/16" x 12 gauge, bucket level indicator

2шт.

16

132-318

COTTER PIN,5/32" x 1"

bucket level indicator 5/32" x 1"

1шт.
