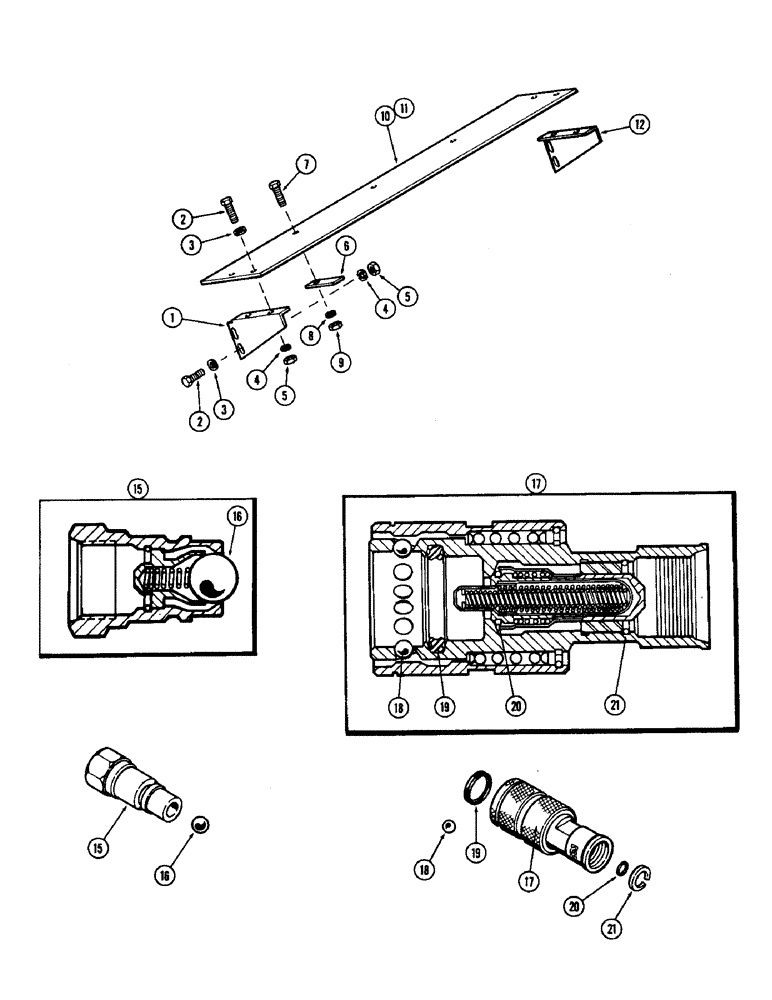

Запчасти Case IH 65 (60) - SPILL GUARD, 60 INCH BUCKET, 66 INCH BUCKET, HYDRAULIC COUPLER (82) - FRONT LOADER & BUCKET

1

T50027

ANGLE

PLATE - end RH

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

3

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

8шт.

6

T50028

CLAMP

4шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

10

T50025

PLATE

- spill guard

1шт.

12

T50026

PLATE - end LH

1шт.

1

T50027

ANGLE

PLATE - end RH, 66 inch buckets

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

66 inch buckets Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

3

95-6

WASHER,3/8"

- 1 x 7/16" x 14 gauge, 66 inch buckets

8шт.

4

92-6

LOCK WASHER,3/8"

66 inch buckets 3/8"

8шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, 66 inch buckets

8шт.

6

T50028

CLAMP, 66 inch buckets

5шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

66" buckets Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

8

92-6

LOCK WASHER,3/8"

66 inch buckets 3/8"

5шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC hex, 66 inch buckets

5шт.

11

T52180

PLATE - spill guard, 66 inch buckets

1шт.

12

T50026

PLATE - end LH, 66 inch buckets

1шт.

15

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway (Male), hydraulic coupler, Includes: Ref, 16

1шт.

16

211-316

BALL,17/32" Dia

- meter, hydraulic coupler 17/32" Dia

1шт.

17

A147888

BREAKER POINTS

COUPLING ASSEMBLY - breakaway (Female), hydraulic coupler, Includes: Ref. 18 - 21

1шт.

18

211-355

BALL

- 3/16" diameter, hydraulic coupler

10шт.

A47220

GASKET KIT

KIT - repair (Not illustrated), hydraulic coupler, Includes: Ref. 19 - 21

1шт.

19

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body, hydraulic coupler

1шт.

20

A47222

SEAL

- poppet , hydraulic coupler

1шт.

21

A45603

RING, LOCKING

RING - lock , hydraulic coupler

1шт.
