Запчасти Case IH 65 (14) - HAY GRAPPLE FORK (82) - FRONT LOADER & BUCKET

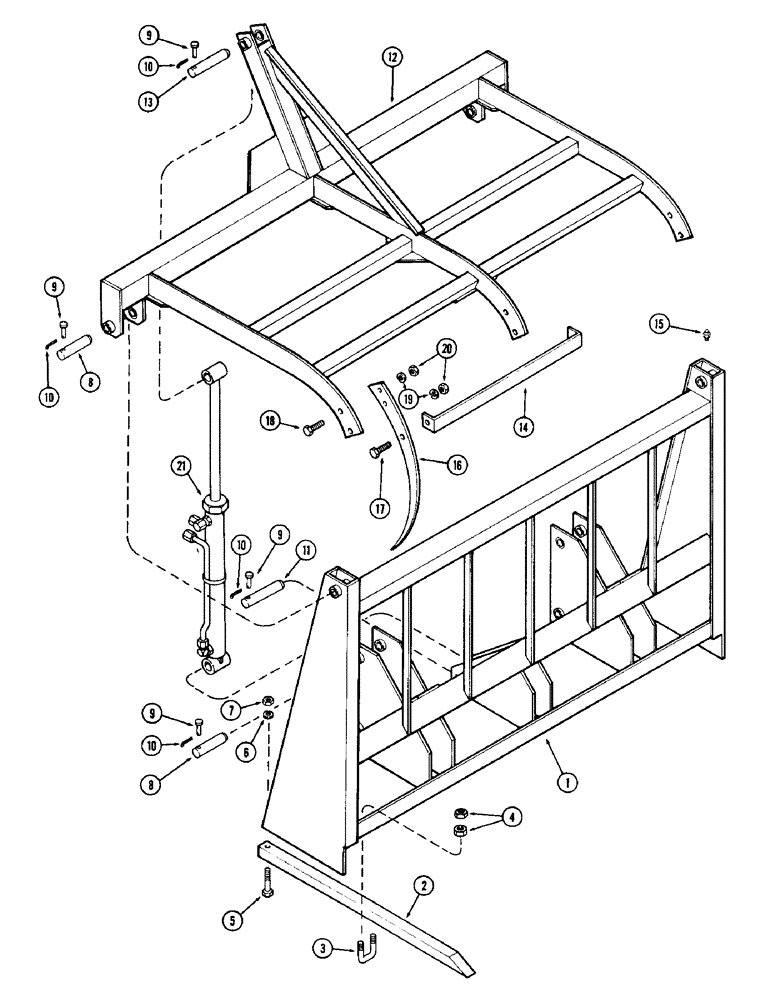

Схема запчастей Case IH 65 - (14) - HAY GRAPPLE FORK (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T53898

FRAME - main

1шт.

2

T53140

TOOTH

10шт.

3

T53900

U-BOLT

U BOLT

10шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

40шт.

5

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

10шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

8

T50016

PIN

- 1-1/8 x 6-1/2"

4шт.

9

T50008

PIN

- clevis

6шт.

10

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

11

T50086

PIN

- 1-1/8 x 5-3/8"

1шт.

12

T53899

GRAPPLE ASSEMBLY

1шт.

13

T53095

HEADLESS PIN,28.57mm OD x 125mm L

PIN - 1-1/8 x 4-1/2"

1шт.

14

T53901

BRACE

- tie

2шт.

15

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

2шт.

16

T53104

TOOTH

- grapple

3шт.

17

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

3шт.

16

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

20

129-107

NUT,5/8"-11, G5

9шт.

21

T53098

CYLINDER

- hydraulic 2" (See Figure 17)

1шт.

Выбрано товаров: 21
