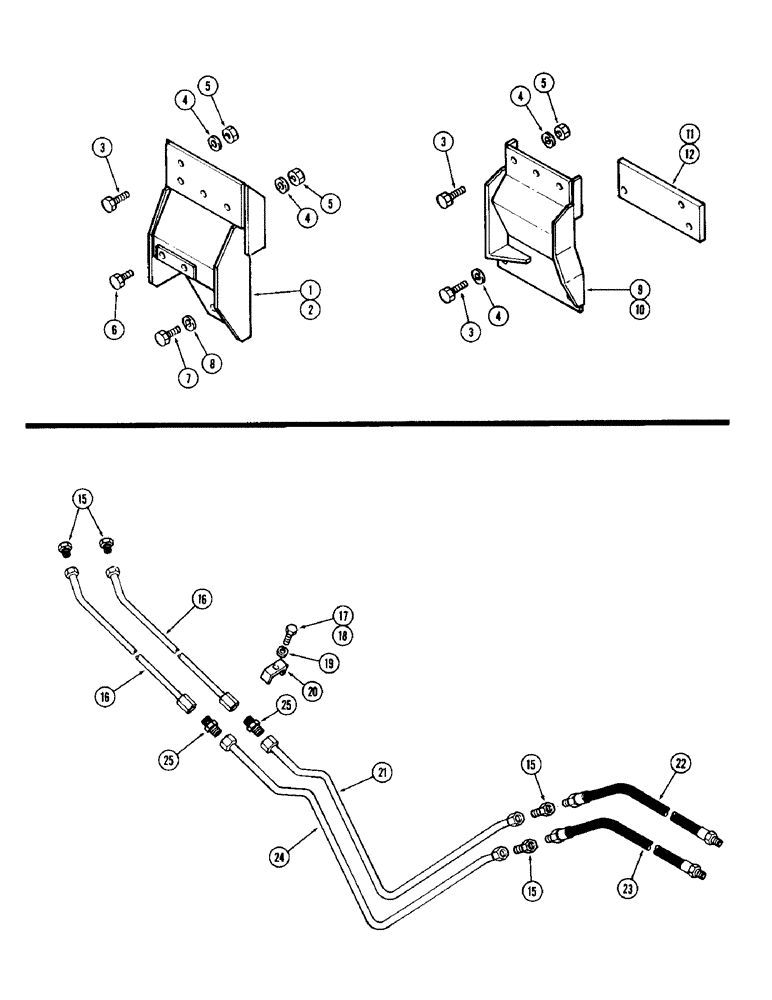

Запчасти Case IH 65 (07A) - MOUNTING BRACKETS, 995 4WD TRACTORS, THIRD CYLINDER KIT (82) - FRONT LOADER & BUCKET

1

T56971

BRACKET - mounting right rear

1шт.

2

T56972

BRACKET - mounting left rear

1шт.

3

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

20шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

28шт.

5

129-107

NUT,5/8"-11, G5

16шт.

6

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

T56973

BRACKET - mounting right rear

1шт.

10

T56974

BRACKET - mounting left rear

1шт.

11

T56975

SPACER - RH (Without weight rack)

1шт.

12

T56976

SPACER - LH (Without weight rack)

1шт.

15

218-465

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Female NPTF

CONNECTOR - 7/8", third cylinder kit used 1979 and after

4шт.

16

T55860

TUBE,0.625" OD x 29.5, 3" L

- hydraulic rear 32-1/2", third cylinder kit used 1979 and after

2шт.

17

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3rd cylinder kit used 1979 and after Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

18

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3rd cylinder kit used 1979 and after Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder kit used 1979 and after 5/16"

3шт.

20

T50064

CLAMP

- tube, third cylinder kit used 1979 and after

3шт.

21

T56508

TUBE - hydraulic front inside 41", third cylinder kit used 1979 and after 0.625" OD

1шт.

22

T50080

HOSE - 3/8 x 72" (To third cylinder), third cylinder kit used 1979 and after

1шт.

23

T50079

HOSE - 3/8 x 60" (To third cylinder), third cylinder kit used 1979 and after

1шт.

24

T56509

TUBE - hydraulic front outside 43", third cylinder kit used 1979 and after 0.625" OD

1шт.

25

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - union 7/8", third cylinder kit used 1979 and after

2шт.
