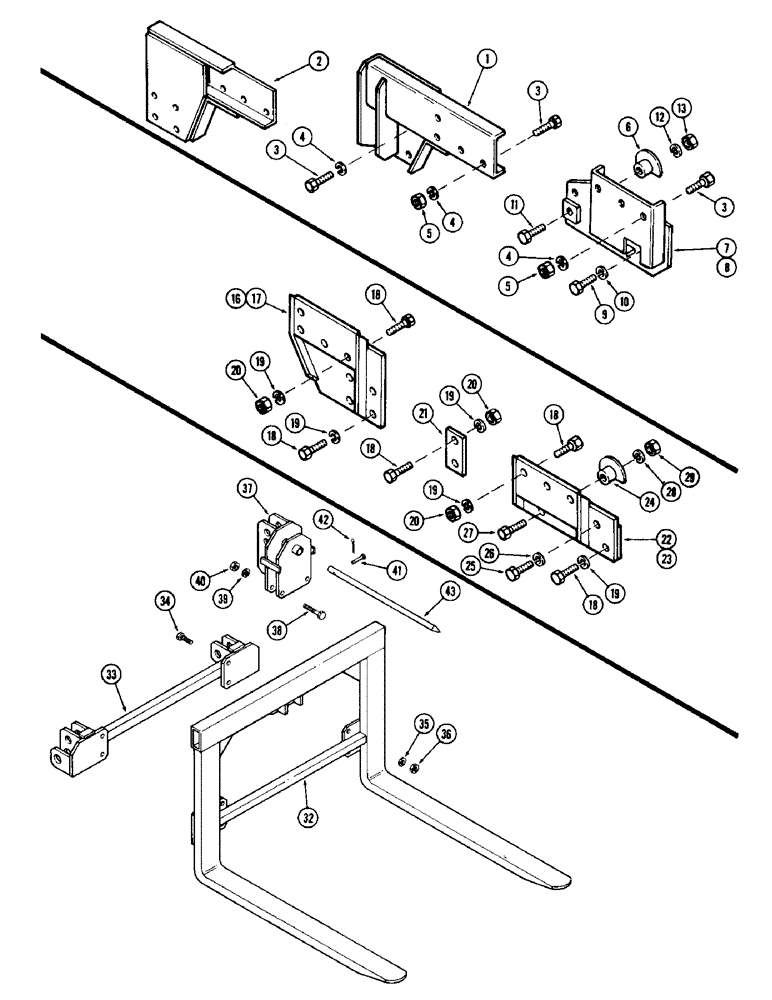

Запчасти Case IH 65 (06) - MOUNTING BRACKETS, 1210, 1212, 1410 AND 1412 TRACTORS, 990, 995 SWD TRACTORS (82) - FRONT LOADER & BUCKET

1

T53954

BRACKET - mounting right rear

1шт.

2

T53953

BRACKET - mounting left rear

1шт.

3

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

22шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

22шт.

5

129-107

NUT,5/8"-11, G5

12шт.

6

T53864

BUSHING

- mounting

2шт.

7

T53952

BRACKET - mounting right front

1шт.

8

T53951

BRACKET - mounting left front

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

10

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

12

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

129-107

NUT,5/8"-11, G5

2шт.

16

T55595

BRACKET - mounting right rear, 990 and 995 2WD tractors

1шт.

17

T55594

BRACKET - mounting left rear, 990 and 995 2WD tractors

1шт.

18

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

990 and 995 2WD tractors Hex, 5/8"-11 x 2", G5

24шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 and 995 2WD tractors 5/8"

24шт.

20

129-107

NUT,5/8"-11, G5

990 and 995 2WD tractors 5/8"-11, G5

14шт.

21

T55596

BAR - spacer steering bracket, 990 and 995 2WD tractors

1шт.

22

T55593

BRACKET - mounting right front, 990 and 995 2WD tractors

1шт.

23

T55592

BRACKET - mounting left front, 990 and 995 2WD tractors

1шт.

24

T53864

BUSHING

- mounting, 990 and 995 2WD tractors

2шт.

25

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

990 and 995 2WD tractors Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

26

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 and 995 2WD tractors 5/8"

2шт.

27

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

990 and 995 2WD tractors Hex, 5/8"-11 x 3", G5

2шт.

28

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , 990 and 995 2WD tractors 5/8"

2шт.

29

129-107

NUT,5/8"-11, G5

990 and 995 2WD tractors 5/8"-11, G5

2шт.

32

T54057

RACK

ASSEMBLY - carrier, 3 point hitch round bale

1шт.

33

T54056

ADAPTER

- lower, 3 point hitch round bale carrier

1шт.

34

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3 point hitch round bale carrier Hex, 3/4"-10 x 2", G5

4шт.

35

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 3 point hitch round bale carrier 3/4"

4шт.

36

129-108

NUT,3/4"-10, G5

3 point hitch round bale carrier 3/4"-10, G5

4шт.

37

T54055

RACK

ASSEMBLY - upper, 3 point hitch round bale carrier

1шт.

38

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3 point hitch round bale carrier Hex, 3/4"-10 x 4", G5

2шт.

39

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , 3 point hitch round bale carrier 3/4"

2шт.

40

129-108

NUT,3/4"-10, G5

3 point hitch round bale carrier 3/4"-10, G5

2шт.

41

T50008

PIN

- clevis, 3 point hitch round bale carrier

1шт.

42

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , 3 point hitch round bale carrier 1/8" x 3/4"

1шт.

43

T54058

TOOTH

3 point hitch round bale carrier

1шт.
