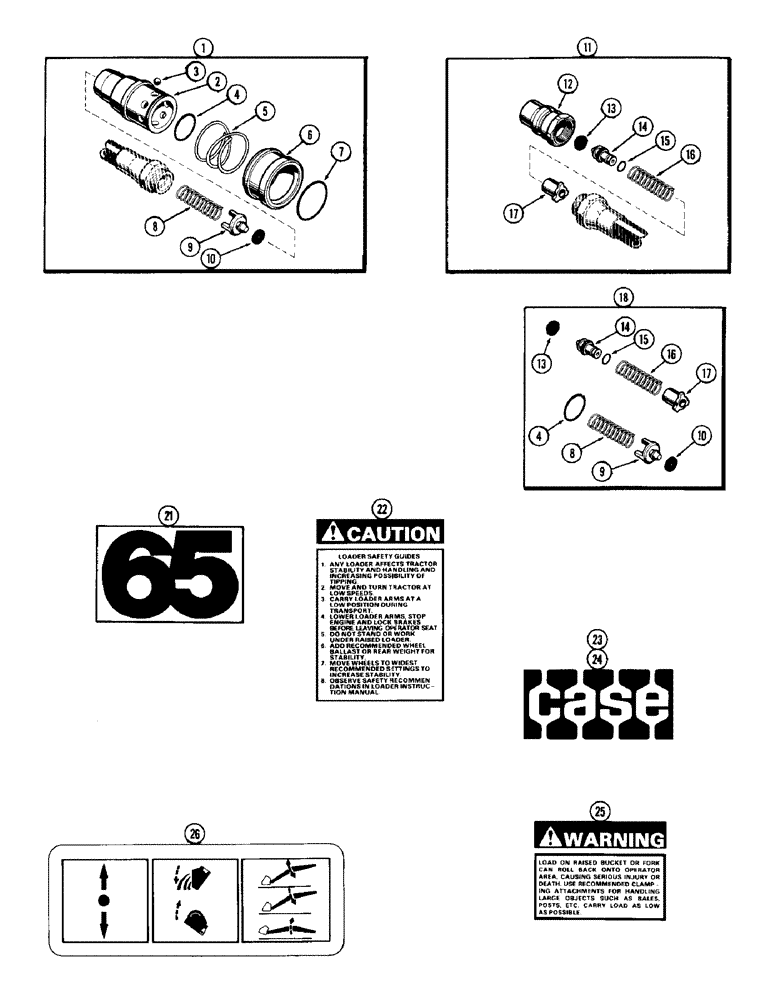

Запчасти Case IH 65 (70) - HYDRAULIC QUICK COUPLER, DECALS (35) - HYDRAULIC SYSTEMS

1

A28542

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - breakaway female, Includes: Ref. 2 - 10

2шт.

2

A27349

BODY

- female section

1шт.

3

211-7

BALL,1/4" Dia

- male coupling swivel 1/4" Dia

8шт.

4

A34848

O-RING

- body 7/8 x 1-1/8 x 1/8"

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

5

A27354

SPRING

- sleeve tension

1шт.

6

A27353

SLEEVE

SLEEVE - male coupling lock and release

1шт.

7

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap sleeve retaining

1шт.

8

A11324

SPRING

- piston pressure

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

9

A26215

PISTON

- coupling socket

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

10

A33964

SEAL

- piston

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

11

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - breakaway male, Includes: Ref. 12 - 17

2шт.

12

A27356

PIPE FITTING

BODY- male section

1шт.

13

A33964

SEAL

- piston

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

14

A27508

PISTON

- coupling

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

15

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston 1/4 x 3/8 x 1/16"

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

16

A27351

SPRING

- piston

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

17

A9631ASY

SPARE PART

- piston

1шт.

Part of Breakaway Coupling Repair Kit P/N A40459

1шт.

18

A40459

KIT

REPAIR KIT - breakaway coupling Includes: Ref. 4, 8-10 and 13-17

1шт.

21

321-3954

DECAL

- Model 65

2шт.

22

321-5655

DECAL

- Safety

1шт.

23

321-2676

DECAL

- Case

1шт.

24

321-2675

DECAL

- Case

2шт.

25

321-5654

DECAL

- Warning

1шт.

26

321-2690

DECAL

- Valve Mount

1шт.

321-5634

DECAL - Loader Safety (French) Not illustrated

1шт.
