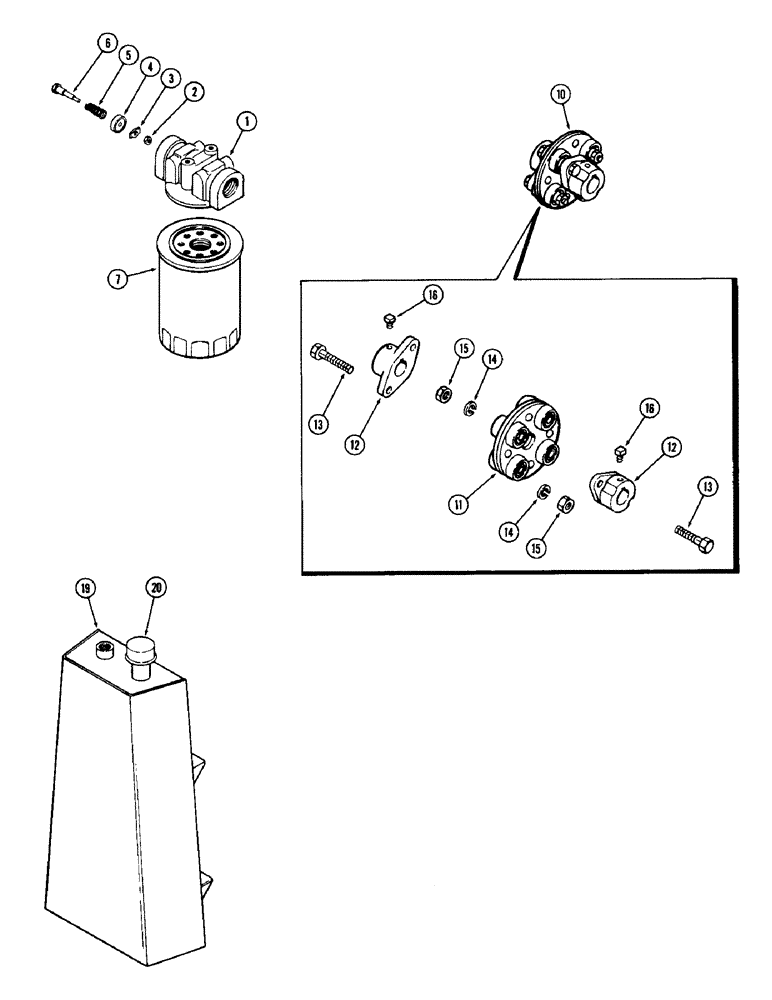

Запчасти Case IH 65 (50) - HYDRAULIC FILTER, COUPLER ASSEMBLY, 990 AND 995 TRACTORS (35) - HYDRAULIC SYSTEMS

T63215

FILTER

ASSEMBLY - hydraulic, Includes: Ref. 1 - 7

1шт.

1

T54622

HEAD

- body

1шт.

2

T54623

NUT

- lock

1шт.

3

T54626

RETAINER

- bypass

1шт.

4

T54624

VALVE POPPET

POPPET - bypass

1шт.

5

T54627

SPRING

- poppet

1шт.

6

T54625

PIN

- bypass

1шт.

7

T54598

ELEMENT

- filter (25 micron)

1шт.

10

T63217

COUPLING

COUPLER ASSEMBLY - drive, Includes: Ref. 11 - 16, 990 and 995 tractors

1шт.

11

T10633

COUPLING

CENTER ASSEMBLY - coupler, 990 and 995 tractors

1шт.

12

T54576

FLANGE

- couple, 990 and 995 tractors

2шт.

13

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

990 and 995 tractors Hex, 5/16"-18 x 1 3/4", G5

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 990 and 995 tractors 5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

990 and 995 tractors 5/16"-18, G5

4шт.

16

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SETSCREW - 1/4 x 1/4" NC socket head, 990 and 995 tractors

2шт.

19

T54586

TANK - reservoir

1шт.

20

T54587

CAP

- reservoir

1шт.

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" (Tank drain) (Not illustrated), reservoir

1шт.
