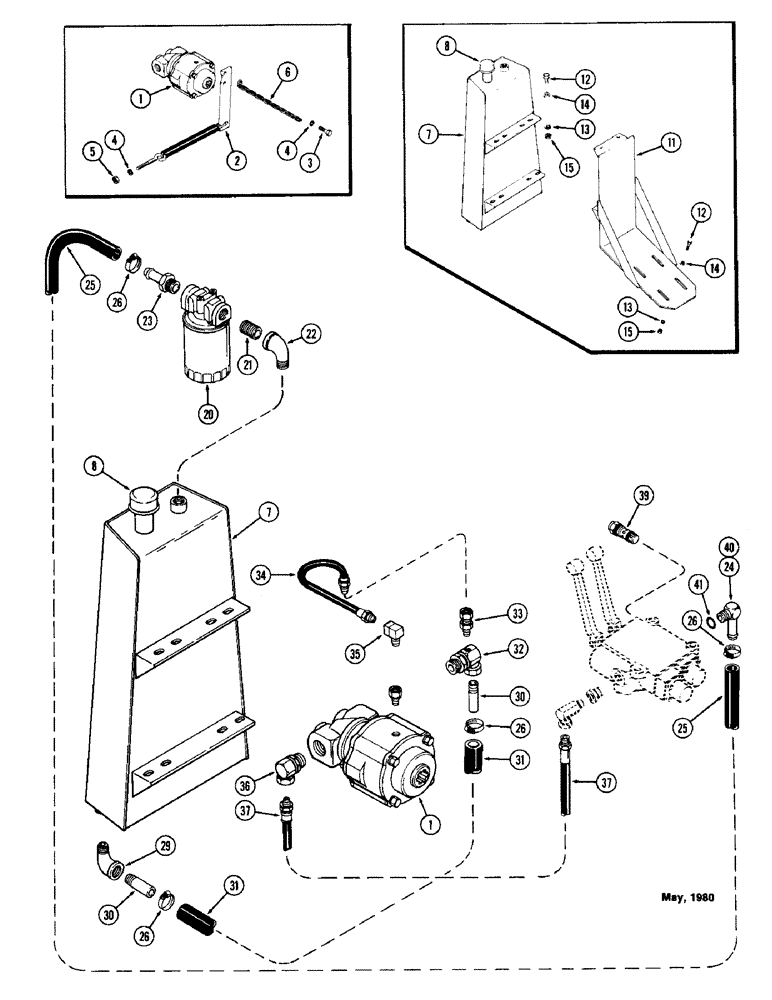

Запчасти Case IH 65 (48) - HYDRAULIC KIT, PTO, 12 GALLON PER MINUTE PUMP, 1210, 1212, 1410 & 1412 TRACTORS (35) - HYDRAULIC SYSTEMS

T91229

KIT - hydraulic PTO (Machinery Item) Used 1978 and before

1шт.

T94963

KIT - hydraulic PTO (Machinery Item) Used 1978 and after, Includes: Ref. 1 - 41

1шт.

1

T54596

PUMP ASSEMBLY - PTO with gear box (See Figure 55)

1шт.

2

T54588

BAR ASSEMBLY - torque, Includes: Ref. 3 - 5

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

6

T54591

CHAIN - torque bar 13"

1шт.

7

T54586

RESERVOIR - hydraulic seven gallon (See Figure 51)

1шт.

8

T54587

CAP

- reservoir

1шт.

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" (In bottom of reservoir) Not illustrated

1шт.

11

T54585

MOUNT - reservoir

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

T63215

FILTER

ASSEMBLY - hydraulic oil (See Figure 51)

1шт.

21

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - 3/4 x 3"

1шт.

22

221-378

ELBOW,90 Degree, 3/4" NPT

- 3/4"

1шт.

23

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

NIPPLE - 3/4 x 3/4"

1шт.

21

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 3/4" (Used 1978 and before)

1шт.

25

T54602

HYDRAULIC HOSE,0.75" ID x 84.00"

- Return 0.75" ID x 84.00"

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

29

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4" x 45 deg. (Used 1978 and before)

1шт.

30

T54578

NIPPLE - 3/4 x 2-1/2" (Used 1978 and before)

2шт.

30

T54578

NIPPLE - 3/4 x 2-1/2" (Used 1978 and after)

1шт.

31

T54601

HOSE - suction 1 x 36"

1шт.

32

T54589

ADAPTER - 1/4 x 3/4 x 1-5/16"

1шт.

33

218-1440

ADAPTER

- union 1/4 x 1/4"

1шт.

34

T54590

HOSE

- 1/4 x 10"

1шт.

35

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

36

218-5390

90 ELBOW,90 Degree, 1 1/16"-12 O-Ring x 1/2" NPSM Fem

ADAPTER - 1/2 x 1-1/16" x 90 deg.

1шт.

37

T50080

HOSE - 1/2 x 72"

1шт.

39

L36080

CARTRIDGE

VALVE - relief 2000 PSI

1шт.

40

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW ASSEMBLY - 3/4 x 7/8" (Used 1978 and after), Includes: Ref. 41

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.
