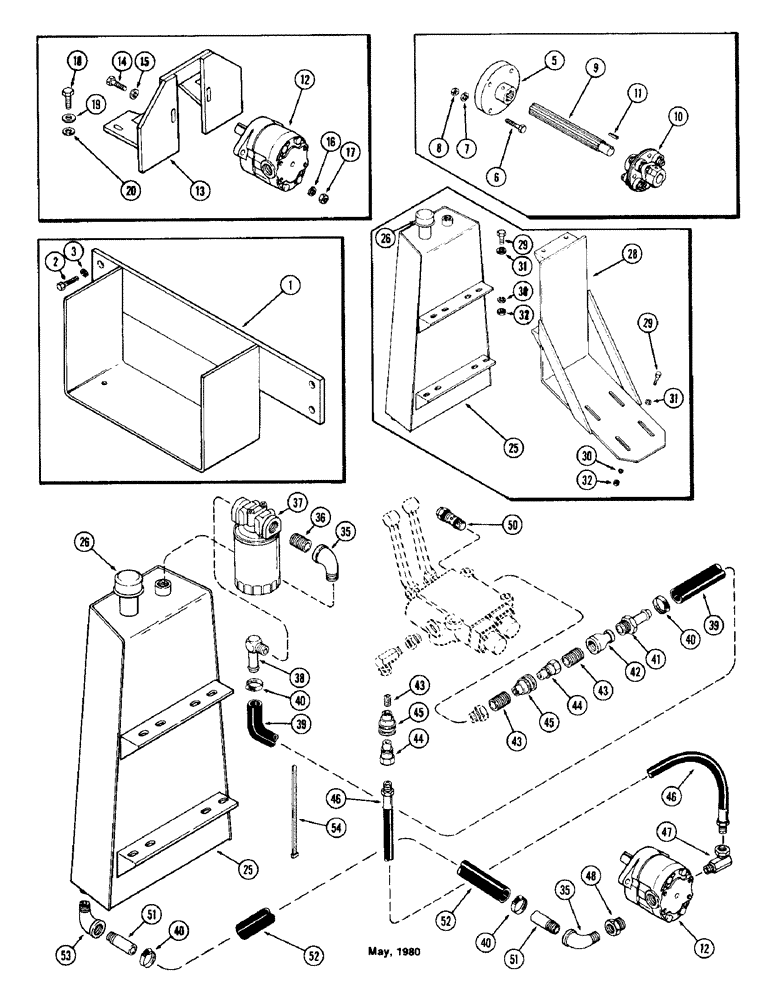

Запчасти Case IH 65 (44) - HYDRAULIC KIT, FRONT MOUNTED, 13 GALLON PER MINUTE PUMP, 990 & 995 2WD TRACTORS, USED 1978 & BEFORE (35) - HYDRAULIC SYSTEMS

T92166

KIT - hydraulic front (Machinery item), Includes: Ref. 1 - 40

1шт.

1

T55221

BRACKET - battery mounting

1шт.

2

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

T54582

ADAPTER

- pulley

1шт.

6

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

8шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

8

9635082

NUT,5/16" - 18, Gr 5

8шт.

9

T54583

SHAFT

- - drive nine inches long

1шт.

10

T63217

COUPLING

COUPLER ASSEMBLY - drive (See Figure 51)

1шт.

11

F62223

KEY

- 3/16 x 1"

1шт.

12

T54597

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (See Figure 53)

1шт.

13

T54584

MOUNT - pump

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

15

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

195-105

WASHER,7/16"

- 1/2 x 1-1/4 x 1/16"

2шт.

129-104

NUT,7/16"-14, G5

(If used) 7/16"-14, G5

2шт.

25

T54586

RESERVOIR - hydraulic seven gallon (See Figure 51)

1шт.

26

T54587

CAP

- reservoir

1шт.

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" (In bottom of reservoir) (Not illustrated)

1шт.

28

T54585

MOUNT - reservoir

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

195-104

WASHER,3/8"

- 7/16 x 1 x 3/32"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

35

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

2шт.

36

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE- 3/4 x 1.375"

1шт.

37

T63215

FILTER

ASSEMBLY - hydraulic oil (See Figure 51)

1шт.

38

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 3/4" x 90 deg.

1шт.

39

T55722

HOSE - return 3/4 x 118"

1шт.

40

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

T92166

KIT - hydraulic front (Machinery Item), Includes: Ref. 41 - 54

1шт.

41

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

NIPPLE - hose 3/4" straight thread

1шт.

42

221-351

COUPLING,Pipe, 3/4" x 1/2" NPT

BUSHING - reducer 3/4 to 1/2"

1шт.

43

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - 1/2 x 1-1/8"

3шт.

44

H49726

PUSH-PULL COUPLING

COUPLER - male half

2шт.

45

H49718

COUPLING

COUPLER - female half

2шт.

46

T52210

HOSE - pressure 3/8 x 96"

1шт.

47

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2 x 90 deg.

1шт.

48

221-65

REDUCER,Hex, 1" x 3/4" NPT

BUSHING - reducer 1 to 3/4"

1шт.

50

T54603

VALVE - relief 2200 PSI

1шт.

51

T54578

NIPPLE - 3/4 x 2-1/2"

2шт.

52

T55723

HYDRAULIC HOSE,110.00"

- - Suction 110.00"

1шт.

53

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4 x 45 deg.

1шт.

T54581

CABLE - battery negative (Not illustrated)

1шт.

54

T54520

STRAP

- nylon tie 3/16 x 11"

4шт.
