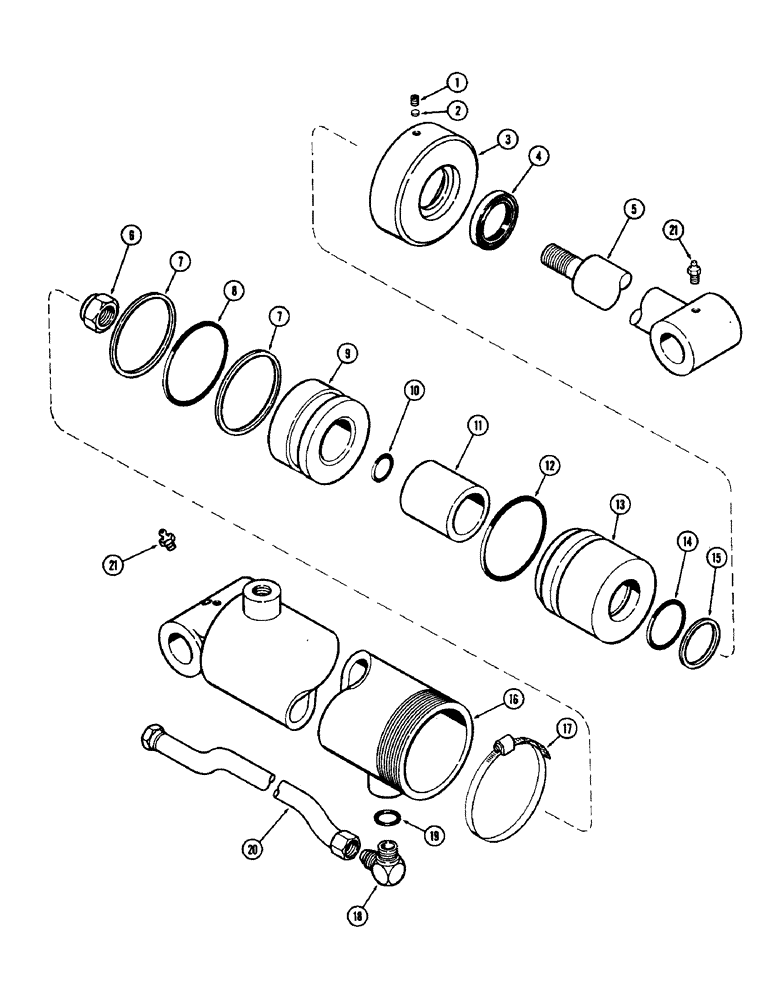

Запчасти Case IH 65 (40) - LIFT CYLINDER, USED PRIOR TO SERIAL NO. 1611964 (35) - HYDRAULIC SYSTEMS

T53947

CYLINDER

- lift 2-1/2" complete, Includes: Ref. 1 - 16

2шт.

1

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SETSCREW - 1/4 x 1/4" socket headless

1шт.

2

T55068

PLUG

- nylon

1шт.

Part of Seal Kit P/N T51786

1шт.

3

T50089

CAP

HEAD CAP

1шт.

4

A41785

WIPER SEAL

SEAL - wiper

1шт.

5

T53950

ROD ASSY.

ROD - piston

1шт.

Part of Seal Kit P/N T51786

1шт.

6

131-909

LOCK NUT,3/4"-16

NUT - piston rod

1шт.

7

B17297

SPECIAL WASHER

WASHER - backup

2шт.

Part of Seal Kit P/N T51786

1шт.

8

T55074

SEAL

O-RING - 2-1/8 x 2-1/2 x 3/16"

1шт.

Part of Seal Kit P/N T51786

1шт.

9

B17273

PISTON

1шт.

10

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1 x 1/8"

1шт.

Part of Seal Kit P/N T51786

1шт.

11

T53949

SPACER

1шт.

12

A35812

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

- 2-1/4 x 2-1/2 x 1/8"

1шт.

Part of Seal Kit P/N T51786

1шт.

13

T50088

HEAD

- cylinder

1шт.

14

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 1-3/4 x 1/8"

1шт.

Part of Seal Kit P/N T51786

1шт.

15

B17326

BACK-UP RING

WASHER - backup

1шт.

Part of Seal Kit P/N T51786

1шт.

16

T53948

TUBE

- cylinder

1шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - cylinder

2шт.

18

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

ASSY - 90 deg., Includes: Ref. 19

2шт.

20

T54444

TUBE,0.625" OD x 13.25" L

- hydraulic

2шт.

21

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16" straight drive

4шт.

T51786

SEAL KIT

KIT - seal Includes: Ref. 2, 4, 7, 8, 10, 12, 14 and 15

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
