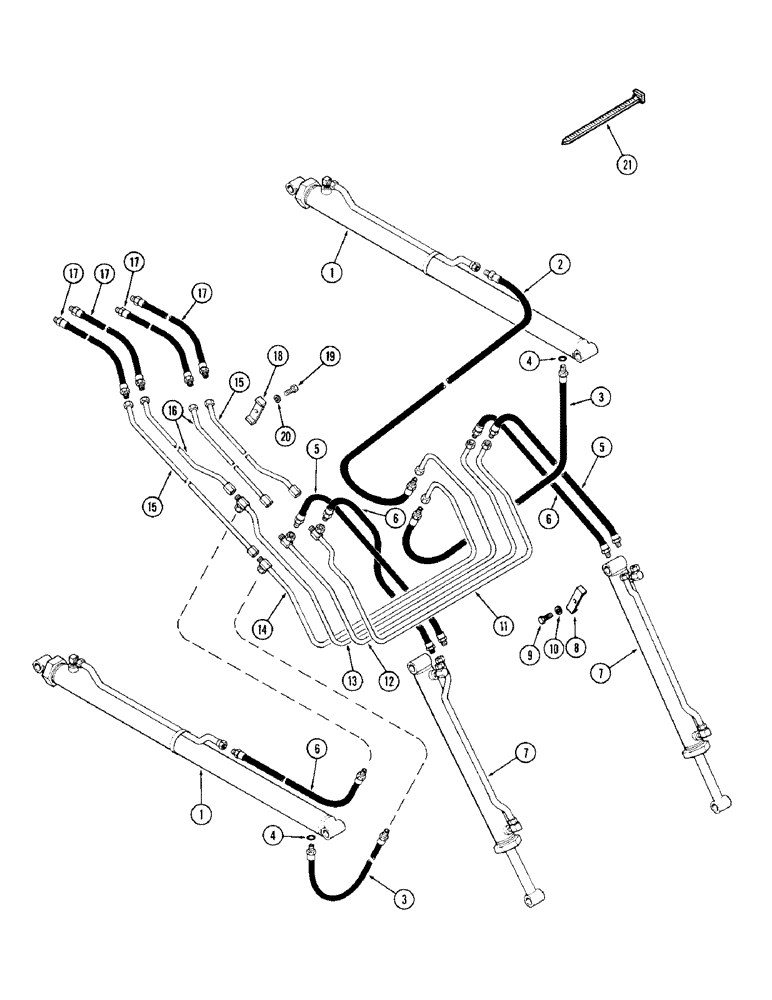

Запчасти Case IH 65 (32) - HYDRAULIC TUBES AND HOSE ASSEMBLY, USED PRIOR TO SN 1611964 (35) - HYDRAULIC SYSTEMS

1

T53947

CYLINDER

- lift (See Figure 41)

2шт.

2

T50494

HOSE - 3/8 x 20"

1шт.

3

T50054

HOSE ASSY - 3/8 x 23", Includes: Ref. 4

2шт.

5

T50053

HOSE - 3/8 x 26"

2шт.

6

T50055

HOSE - 3/8 x 22"

3шт.

7

T51783

CYLINDER

- bucket (See Figure 37)

2шт.

8

T50064

CLAMP

- tube

8шт.

9

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

11

T50059

TUBE,0.625" OD

- hydraulic

1шт.

12

T50060

TUBE,0.625" OD x 34.25, 27.375" L

- hydraulic

1шт.

13

T50061

TUBE,0.625" OD

- hydraulic

1шт.

14

T50062

TUBE,0.625" OD

- hydraulic

1шт.

15

T50057

TUBE,36.25, 1.234" L

- hydraulic

2шт.

16

T50056

TUBE - hydraulic 31.5, .875" L

2шт.

17

T53780

HOSE - 3/8 x 48"

4шт.

18

T50065

PIN

- tube

1шт.

19

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

T54520

STRAP

- nylon tie 3/16 x 11"

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
