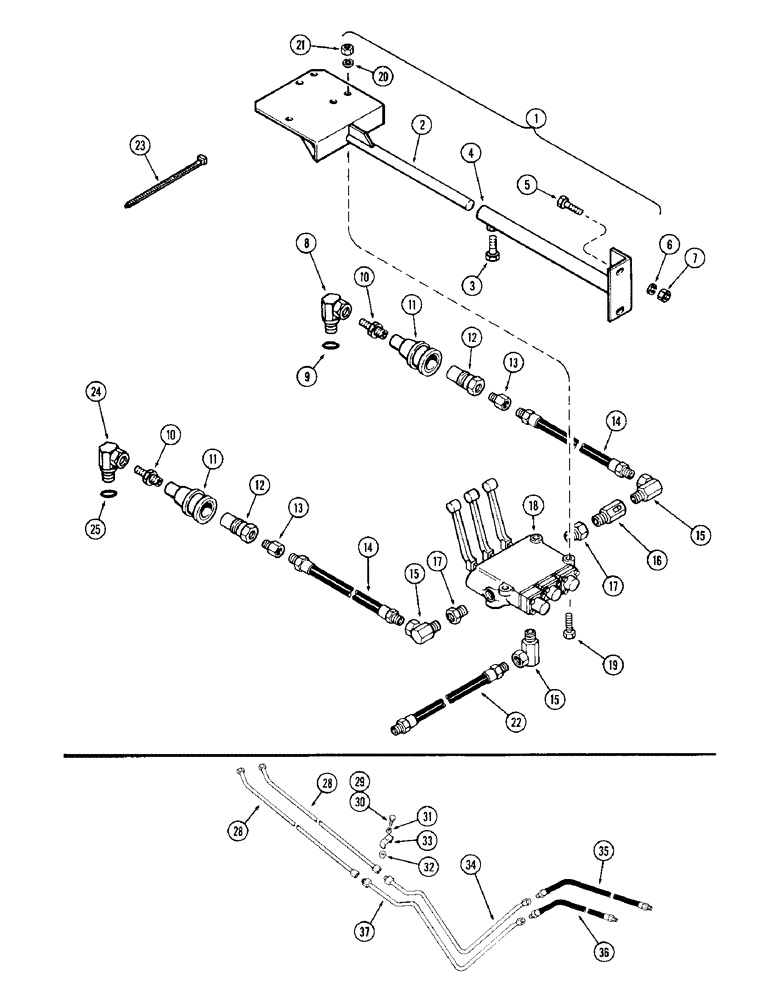

Запчасти Case IH 65 (28) - THREE SPOOL CONTROL VALVE AND HOSES, USED 1979 AND BEFORE (35) - HYDRAULIC SYSTEMS

1

T53144

MOUNT ASSEMBLY - valve universal, Includes: Ref. 2 - 7

1шт.

2

T53566

EXTENSION

- valve mount

1шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

4

T53405

MOUNTING PARTS

BASE - valve mount

1шт.

5

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

6

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

129-107

NUT,5/8"-11, G5

2шт.

8

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 7/8", Inlcudes: Ref. 9

1шт.

10

A27359

ADAPTER

- 1/2 x 7/8"

2шт.

11

A28542

COUPLING, QUICK, FEM

COUPLING - female (See Figure 71)

2шт.

12

A28541

COUPLING, BREAK AWAY

COUPLING - male (See Figure 71)

2шт.

13

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- 1/2 x 7/8"

2шт.

14

T50079

HOSE - 3/8 x 60", Serial Range: (Valve-tractor)

2шт.

15

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

FITTING - hose 1/2"

8шт.

16

T53145

CHECK VALVE

VALVE - check

1шт.

17

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer 1/2 to 3/4"

2шт.

18

T53143

VALVE

- control (See Figure 31) Order T57232

1шт.

19

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

22

T53780

HOSE - 3/8 x 48", Serial Range: (Valve-loader)

6шт.

23

T54520

STRAP

- nylon tie 3/16 x 11"

2шт.

24

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 1/2 x 3/4", Includes: Ref. 25

1шт.

28

T53777

TUBE,0.625" OD x 38.125" L

- hydraulic rear 38-1/8", third cylinder kit used 1979 and before

2шт.

29

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3rd cylinder kit used 1979 and before Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3rd cylinder kit used 1979 and before Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , 3rd cylinder kit used 1979 and before 5/16"

3шт.

32

9635082

NUT,5/16" - 18, Gr 5

Third cylinder kit used 1979 and before 5/16"-18, G5

3шт.

33

T50064

CLAMP

- tube, third cylinder kit used 1979 and before

3шт.

34

T53775

TUBE,0.625" OD

- hydraulic front inside 37-1/2", third cylinder kit used 1979 and before

1шт.

35

T50080

HOSE - 3/8 x 72" (To third cylinder), third cylinder kit used 1979 and before

1шт.

36

T50079

HOSE - 3/8 x 60" (To third cylinder), third cylinder kit used 1979 and before

1шт.

37

T53776

TUBE - hydraulic front outside 39-1/2", third cylinder kit used 1979 and before 0.625" OD

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
