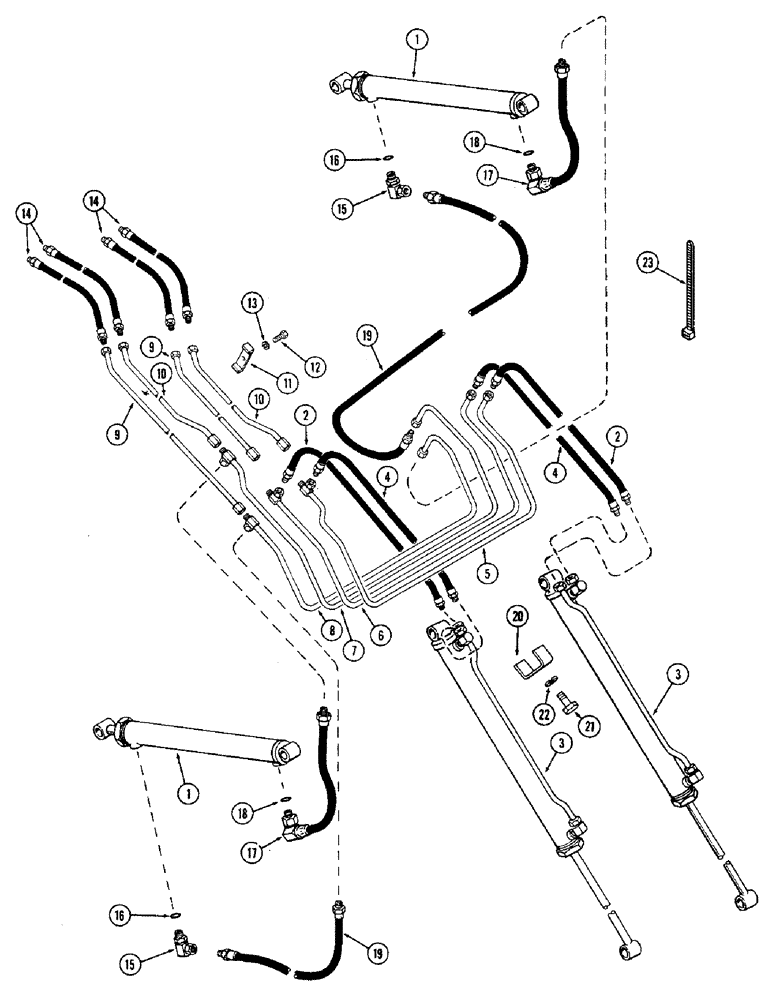

Запчасти Case IH 60 (22) - HYDRAULIC TUBES AND HOSE ASSEMBLIES, PRIOR TO SN 1613899 (35) - HYDRAULIC SYSTEMS

1

T53550

CYLINDER - lift (See Figure 33) Order T54040

2шт.

2

T50055

HOSE - 3/8 x 22"

2шт.

3

T53098

CYLINDER

- bucket (See Figure 27)

2шт.

4

T50053

HOSE - 3/8 x 26"

2шт.

5

T50059

TUBE,0.625" OD

- hydraulic

1шт.

6

T50060

TUBE,0.625" OD x 34.25, 27.375" L

- hydraulic

1шт.

7

T50061

TUBE,0.625" OD

- hydraulic

1шт.

8

T50062

TUBE,0.625" OD

- hydraulic

1шт.

9

T50057

TUBE,36.25, 1.234" L

- hydraulic

2шт.

10

T50056

TUBE - hydraulic 31.5, .875" L

2шт.

11

NLS

NO LONGER SERVICED

- tube

1шт.

12

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

T53780

HOSE - 3/8 x 48", Serial Range: (Valve-loader)

4шт.

15

218-5203

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 90 Deg., Includes: Ref. 16

2шт.

17

T53686

HOSE - 3/8 x 23", Includes: Ref. 18

2шт.

19

T55159

HOSE - 3/8 x 16"

2шт.

20

T50064

CLAMP

- tube

8шт.

21

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

23

T54520

STRAP

- nylon tie 3/16 x 11"

2шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 13/16 x 3/32"

1шт.
